HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M15

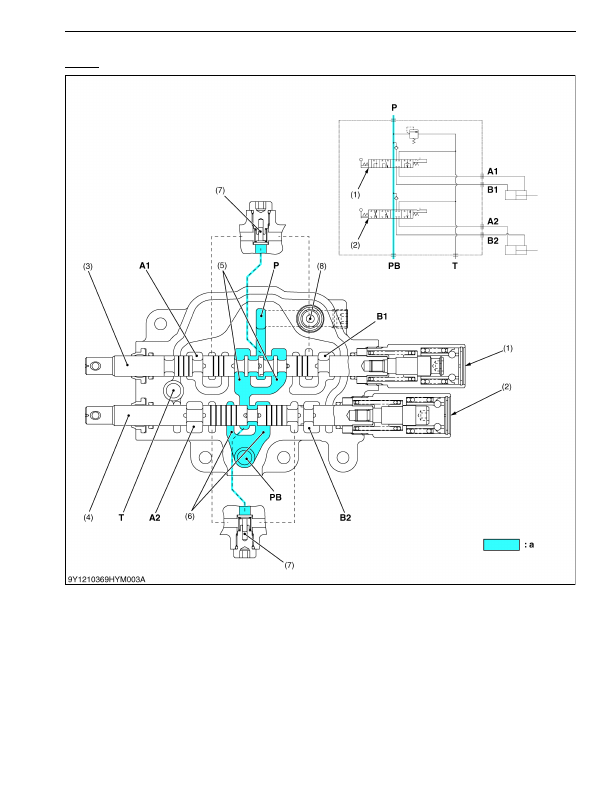

[3] OPERATION

Neutral

9Y1210824HYM0018US0

(1) Boom Control Section

(2) Bucket Control Section

(3) Spool

(4) Spool

(5)

PB

Passage 1

(6)

PB

Passage 2

(7) Load Check Valve

(8) Relief Valve

T:

Tank Port

P:

Pump Port

A1: A1 Port
A2: A2 Port

B1: B1 Port
B2: B2 Port
PB: Power Beyond Port
