HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-M18

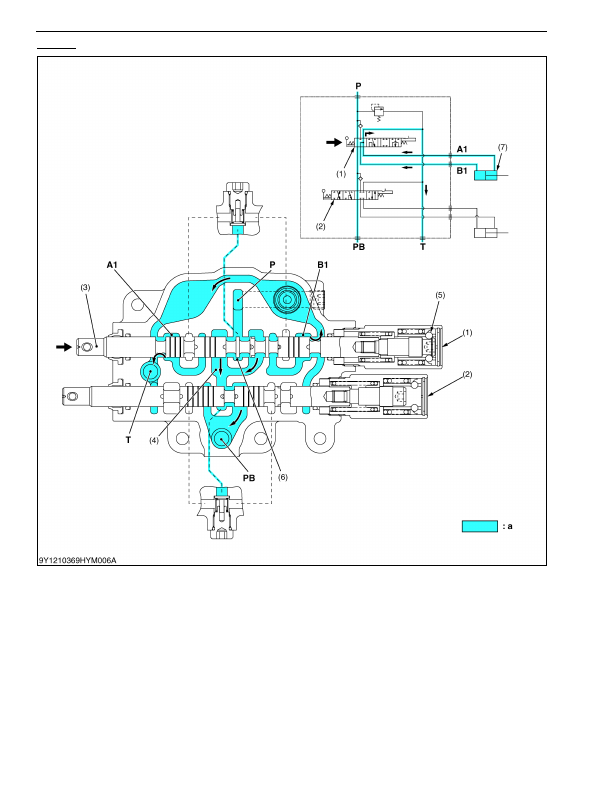

Floating

1. When the hydraulic control lever is set to the

"FLOAT"

 position, the spool (3) moves further to the right from the

"DOWN"

 position and is retained by the detent mechanism (5).

2. This forms oil passages among the

A1

 port,

B1

 port and

T

 port. As a result, oil in the boom cylinder (7) flows freely

from the

A1

 port and

B1

 port through the

T

 port to the transmission case.

3. Oil entering the

P

 port flows to the bucket control section (2) through the neutral passage 1 (6) and

PB

 passage

1 (4).

9Y1210824HYM0021US0

(1) Boom Control Section

(2) Bucket Control Section

(3) Spool

(4)

PB

 Passage 1

(5) Detent Mechanism

(6) Neutral Passage 1

(7) Boom Cylinder

P:

Pump Port

T:

Tank Port

A1: A1 Port
B1: B1 Port
PB: Power Beyond Port
a:

Low Pressure

KiSC issued 03, 2016 A

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 547

  • 1. When the hydraulic control lever is set to the "FLOAT" position, the spool (3) moves further to the right from the "DOWN" position and is retained by the detent mechanism (5).
  • 2. This forms oil passages among the A1 port, B1 port and T port.
  • 3. Oil entering the P port flows to the bucket control section (2) through the neutral passage 1 (6) and PB passage 1 (4).
