[4]  CHECK POINTS OF EVERY 100 HOURS

Adjusting Clutch Pedal Free Travel (GST / Manual
Transmission)

1. See page G-20.

9Y1210824GEG0037US0

Adjusting Brake Pedal Free Travel

1. See page G-20.

9Y1210824GEG0038US0

Checking Battery Condition

 DANGER

To avoid the possibility of battery explosion:
For the refillable type battery, follow the instructions below.

• Do not use or charge the refillable type battery if the fluid

level is below the LOWER (lower limit level) mark.
Otherwise, the battery component parts may prematurely
deteriorate, which may shorten the battery's service life or
cause an explosion. Check the fluid level regularly and add
distilled water as required so that the fluid level is between
the UPPER and LOWER levels.

 CAUTION

• Never remove the vent plugs while the engine is running.
• Keep electrolyte away from eyes, hands and clothes. If you

are spattered with it, wash it away completely with water
immediately and get medical attention.

• Keep open sparks and flames away from the battery at all

times.
Hydrogen gas mixed with oxygen becomes very explosive.

• Wear eye protection and rubber gloves when working

around battery.
NOTE

• The factory-installed battery is of non-refillable type. If the

indicator turns white, do not charge the battery but replace
it with new one.

1. Mishandling the battery shortens the service life and adds to

maintenance costs.

2. The original battery is maintenance free type battery, but need

some servicing.

If the battery is weak, the engine is difficult to start and the lights

be dim. It is important check the battery periodically.



How to read the indicator

Check the battery condition by reading the indicator.

9Y1210824GEG0039US0

State of indicator display

Green

Specific gravity of electrolyte and quality of electrolyte

are both in good condition.

Black

Needs charging battery.

White

Needs replacing battery.

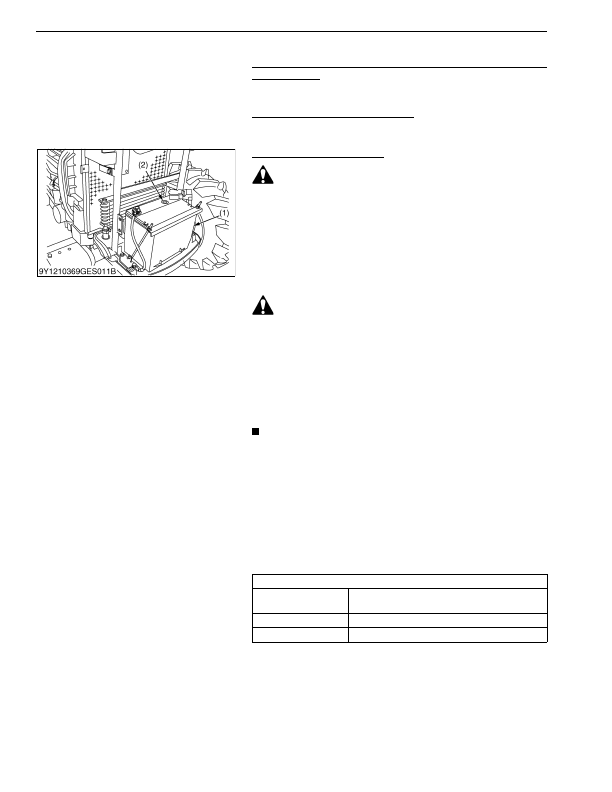

(1) Battery

(2) Indicator
