HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-S6

4. CHECKING AND ADJUSTING

[1] HYDRAULIC PUMP (FOR POWER STEERING)

(1) Pump Test Using Flow-meter

Preparation

1. Pull down the knob and open the bonnet.

2. Remove the side skirt R.H. and front grill.

3. Remove the steering joint screw (1), cover (4), steering joint

shaft (2) and steering joint shaft support (3).

4. Remove the regulator delivery pipe (5).

(When reassembling)

• Install the copper washers firmly.

• Tighten the steering joint shaft support mounting screw after

adjusting the position of steering joint shaft support (3) for

smooth rotation of the steering wheel.

9Y1210824HYS0004US0

Tightening torque

Regulator delivery pipe

joint bolt

40 to 49 N·m

4.0 to 5.0 kgf·m

29 to 36 lbf·ft

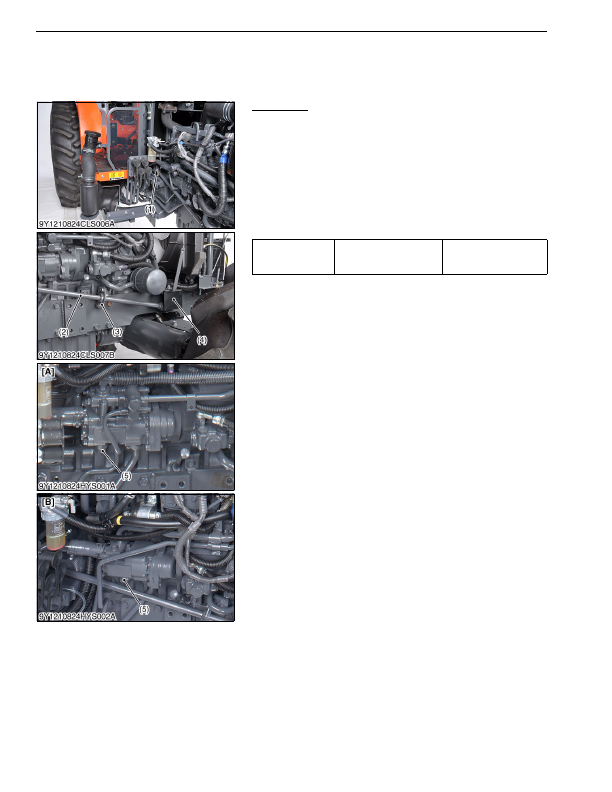

(1) Steering Joint Screw

(2) Steering Joint Shaft

(3) Steering Joint Shaft Support

(4) Cover

(5) Regulator Delivery Pipe

[A] Manual Transmission and GST
[B] HST

KiSC issued 03, 2016 A
