HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-S15

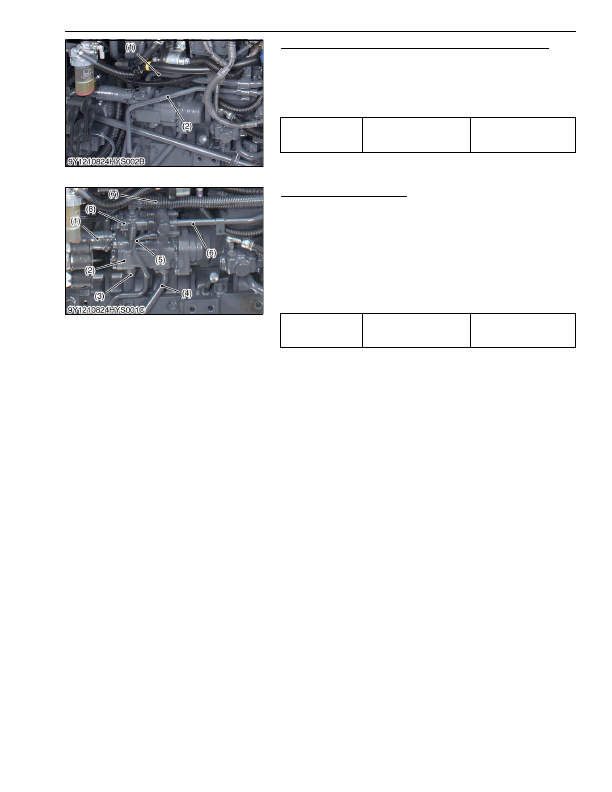

Power Steering Delivery Pipe and Oil Cooler Return Pipe

1. Disconnect the power steering delivery pipe (2) and oil cooler

return pipe (1).

(When reassembling)

• Install the copper washers firmly.

• Be careful not to damage the O-ring.

9Y1210824HYS0014US0

Hydraulic Pump Assembly

1. Disconnect the power steering delivery pipe (6) and return hose

(7).

2. Disconnect the PTO delivery pipe (5) and regulator delivery pipe

(3).

3. Remove the regulating valve (8).

4. Disconnect the suction hose (1) and main delivery pipe (4).

5. Remove the hydraulic pump assembly (2).

(When reassembling)

• Apply grease to the O-ring and be careful not to damage it.

9Y1210824HYS0015US0

Tightening torque

Power steering delivery

pipe joint bolt

40 to 49 N·m

4.0 to 5.0 kgf·m

29 to 36 lbf·ft

(1) Oil Cooler Return Pipe

(2) Power Steering Delivery Pipe

Tightening torque

Hydraulic pump assembly

mounting screw and nut

24 to 27 N·m

2.4 to 2.8 kgf·m

18 to 20 lbf·ft

(1) Suction Hose

(2) Hydraulic Pump Assembly

(3) Regulator Delivery Pipe

(4) Main Delivery Pipe

(5) PTO Delivery PIpe

(6) Power Steering Delivery Pipe

(7) Return Hose

(8) Regulator Valve

KiSC issued 03, 2016 A
