HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-S21

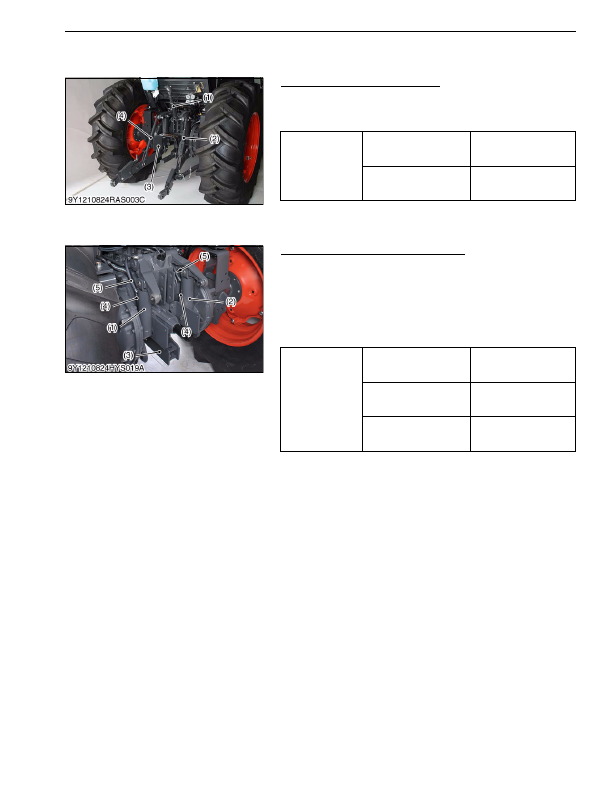

[4]  LIFT ARM SUPPORT AND HYDRAULIC CYLINDER

(1)  Separating Hydraulic Cylinder

Top Link, Lift Rod and PTO Cover

1. Remove the top link (1), lower links and PTO cover (3).

2. Disconnect the lift rods (2), (4) from lift arm.

(When reassembling)

9Y1210824HYS0026US0

Drawbar Frame and Hydraulic Cylinder

1. Remove the drawbar frame (3).

2. Remove the hydraulic cylinder pins.

3. Disconnect the hydraulic cylinder hoses (4) and return hoses

(5), then remove the hydraulic cylinders (1), (2).

(When reassembling)

• Apply grease to the hydraulic cylinder pins.

• Install the cylinder pin (lower) from right hand side.

9Y1210824HYS0027US0

Tightening torque

Lift arm pin mounting nut

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

Lift arm pin lock nut

63 to 72 N·m

6.4 to 7.4 kgf·m

47 to 53 lbf·ft

(1) Top Link

(2) Lift Rod R.H.

(3) PTO Cover

(4) Lift Rod L.H.

Tightening torque

Drawbar frame mounting

screw (M14)

167 to 196 N·m

17.0 to 20.0 kgf·m

123 to 144 lbf·ft

Drawbar frame mounting

screw (M12)

78 to 90 N·m

7.9 to 9.2 kgf·m

58 to 66 lbf·ft

Hydraulic cylinder hose

retaining nut

35 to 48 N·m

3.5 to 4.9 kgf·m

26 to 35 lbf·ft

(1) Hydraulic Cylinder L.H.

(2) Hydraulic Cylinder R.H.

(3) Drawbar Frame

(4) Hydraulic Cylinder Hose

(5) Return Hose

KiSC issued 03, 2016 A
