HYDRAULIC SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

8-S26

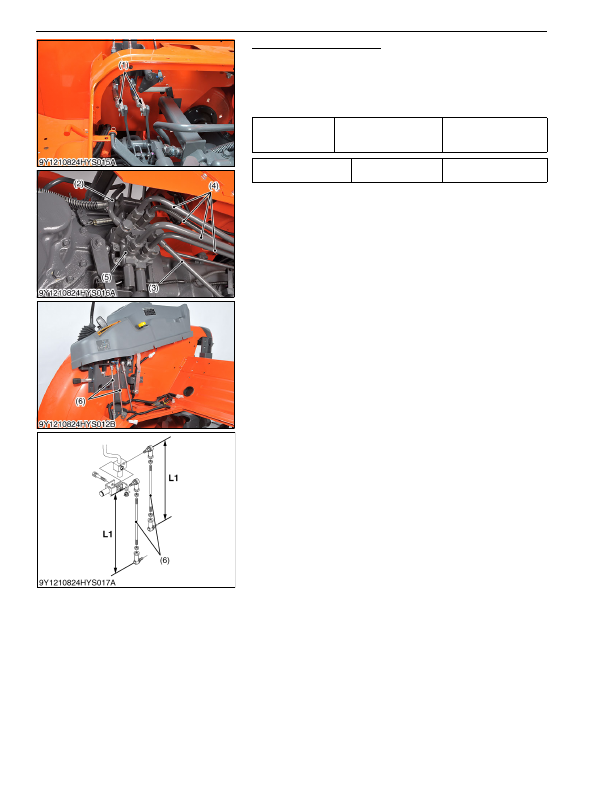

Front Loader Control Valve

1. Remove the ß pin (1).

2. Remove the delivery pipe 2 (2) and delivery pipe 1 (3).

3. Remove the front loader pipes (4).

4. Remove the front loader control valve assembly (5).

(When reassembling)

9Y1210824HYS0032US0

Tightening torque

Joint bolt for delivery pipe 1

and 2

118 to 137 N·m

12.0 to 14.0 kgf·m

46.8 to 101 lbf·ft

Length

"L1"

Reference value

283 mm

11.1 in.

(1) ß Pin

(2) Delivery Pipe 2

(3) Delivery Pipe 1

(4) Front Loader Pipe

(5) Front Loader Control Valve

Assembly

(6) Front Loader Lever Rod

KiSC issued 03, 2016 A
