GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-30

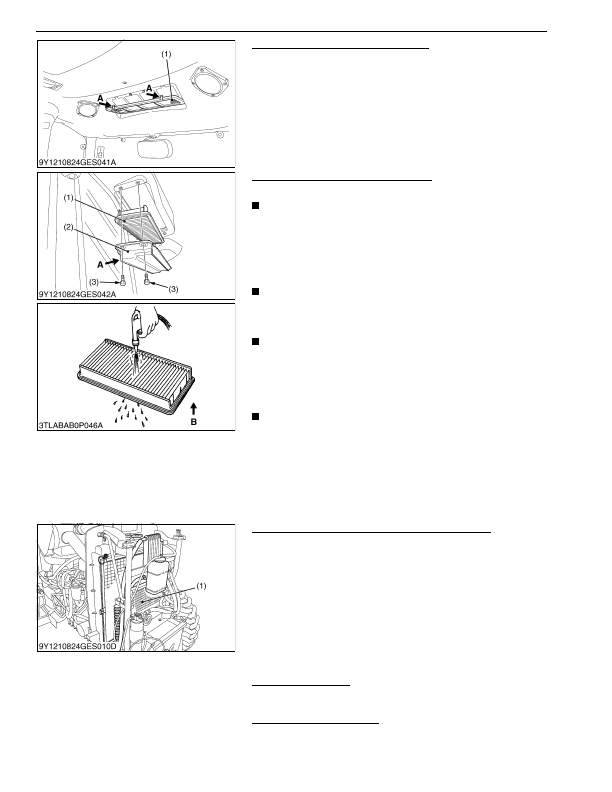

Cleaning Inner Air Filter (Cabin Type)

1. Press the inner air filter in the arrow-marked directions to unlock

it and remove the inner  filter, and blow  air from  the direction

opposite to the filter's normal air flow.

2. Pressure  of  compressed  air  must  be  under  205  kPa  (2.1

kgf/cm

2

, 30 psi).

9Y1210824GEG0051US0

Cleaning Fresh Air Filter (Cabin Type)

Remove the knob bolts and pull out the fresh air filter.

NOTE

• Attach the filter and cover as the illustration.



Cleaning the Air Filter

1. Normal use

Blow air from the opposite direction to the filter's normal air flow.

Pressure  of  compressed  air  must  be  under  205  kPa  (2.1

kgf/cm

2

, 30 psi).

IMPORTANT

• Do not hit the filter. If the filter becomes deformed, dust

may enter into the air-conditioner, which may cause
damage and malfunction.
NOTE

• If the filter is very dirty:

Dip the filter in lukewarm water with mild dish washing
detergent.
Move it up and down as well as left and right to loosen dirt.
Rinse the filter with clean water and let it air-dry.
IMPORTANT

• Do not use gasoline, thinner or similar chemicals to clean

the filter as damage to the filter may occur.

• If may also cause an unpleasant odor in the CABIN when

the system is used next.

9Y1210824GEG0052US0

Checking Air Conditioner Condenser (Cabin Type)

1. Check air conditioner condenser to be sure it is clean of debris.

9Y1210824GEG0053US0

[6]  CHECK POINTS OF EVERY 400 HOURS

Changing Engine Oil

• See page G-21.

9Y1210824GEG0054US0

Replacing Engine Oil Filter

• See page G-22.

9Y1210824GEG0055US0

(1) Inner Air Filter

A: Push

(1) Fresh Air Filter

(2) Cover

(3) Knob Bolt

A: Air Inlet Port
B: Air Conditioner Air Flow

(1) Air Conditioner Condenser

KiSC issued 03, 2016 A
