ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M22

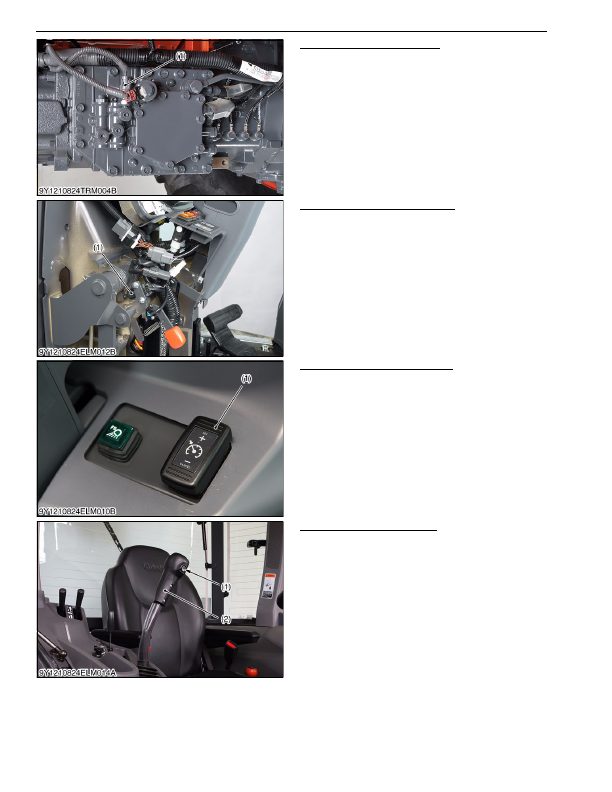

Oil Pressure Switch: For GST

This switch (1)  is designed to  detect  that  the  gear

shift completion of GST and pressurizing of GST clutch

pressure, and is mounted at the side of GST valve. It is

turned on when the pilot pressure has become higher

than 0.49 MPa (5 kgf/cm

2

, 71 psi) and is turned off when

the  pressure  has  become  lower  than  0.34  MPa

(3.5 kgf/cm

2

, 50 psi).

9Y1210824ELM0025US0

Cruise Release Switch : For HST

This switch (1) is mounted close to the fulcrum of the

brake pedal. This switch (1) is turned on when the brake

pedal is depressed.

9Y1210824ELM0026US0

Cruise Control Switch : For HST

The cruise control switch (1) is located right of the

electronic instrument pane.

With  this  device,  you  can  set  or  cancel  the  cruise

speed function and can increase or decrease the cruise

control speed.

9Y1210824ELM0027US0

Throttle-Up Switch : For HST

The  throttle-up  switch  (1)  is  located  on  the  front

loader control valve lever (2).

When  holding  down  the  throttle-up  switch  (1),  the

engine revolution increases to a preset revolution.

9Y1210824ELM0028US0

(1) Oil Pressure Switch

(1) Cruise Release Switch

(1) Cruise Control Switch

(1) Throttle-Up Switch

(2) Front Loader Control Valve

Lever

KiSC issued 03, 2016 A
