ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M25

Swashplate Position Sensor : For HST

The swashplate position sensor is located above the

regulating valve.

The sensor is linked with the servo piston.

If the servo piston moves (if swashplate is inclined),

the sensor detects its position and signals are sent to the

ECU.

9Y1210824ELM0037US0

HST Range Gear Shift Lever Sensor: For HST

This sensor (1) is designed to detect the position at

which the HST range gear shift lever changes the speed,

and is mounted at the bottom of the lever.

It has the variable resistor of revolution angle type,

and  the  maximum  resistance  value  is  approximately

5.4 kΩ. It outputs the lever position of

L

M

N

 or

H

 in the

range of approximately 0.3 to 4.6 V.

9Y1210824ELM0038US0

HST Pedal Sensor: For HST

The HST pedal sensor is located on the right of the

HST pedal. When the HST pedal is operated, signals are

sent to the ECU.

9Y1210824ELM0039US0

(5) Others

Glow Relay

This  tractor  has  a  system  in  which  glow  control

controls  the  coil  current  that  starts  or  stops  the

preheating circuit.

The  time  required  for  preheating  is  adjusted  by

means of the coolant temperature sensor.

9Y1210824ELM0040US0

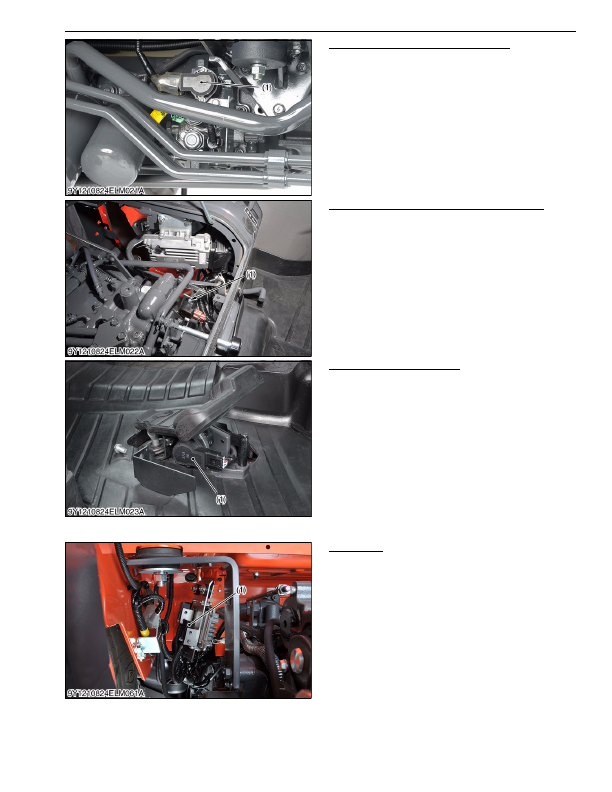

(1) Swashplate Position Sensor

(1) HST Range Gear Shift Lever

Sensor

(1) HST Pedal Sensor

(1) Glow Relay

KiSC issued 03, 2016 A
