ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M26

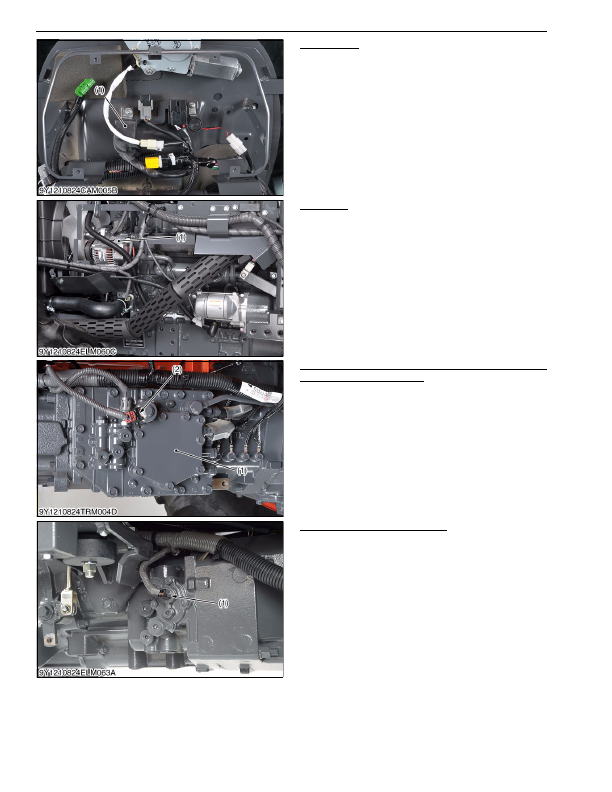

Flusher Unit

Flusher unit controls the blinking frequency as a only

one side of lamp blinking of turn signal and both right and

left side lamps blinking of hazard signal.

The blinking frequency is 60 to 80 times per minutes.

9Y1210824ELM0041US0

Alternator

The terminal

L

 of this alternator detects a signal from

the battery charge. The alternator (1) sends a signal for

making the alarm lamp at the electronic instrument panel

to  light  up  if  the  electricity  charge  system  becomes

abnormal.

9Y1210824ELM0042US0

GST Valve (Solenoid Valves and Proportional
Reducing Valve): For GST

This valve (1) includes the sensors and switches and

the associated necessary for GST control, solenoid that

actuates GST, shift pin, proportional reducing valve, and

others.  It  sends  information  from  sensors  and  the

associated to ECU, and then a signal from ECU actuates

each solenoid valve.

9Y1210824ELM0043US0

Hi-Lo Solenoid Valve : For HST

The Hi-Lo solenoid valve (1) is located on the left of

the HST.

The Hi-Lo solenoid valve (1) is operated by signals

from the ECU.

The HST motor is changed between Hi and Lo sides

by switching the valve.

9Y1210824ELM0044US0

(1) Flasher Unit

(1) Alternator

(1) GST Valve Assembly

(2) Proportional Reducing Valve

(1) Hi-Lo Solenoid Valve

KiSC issued 03, 2016 A
