ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M28

[3] BASIC CONTROL SYSTEM

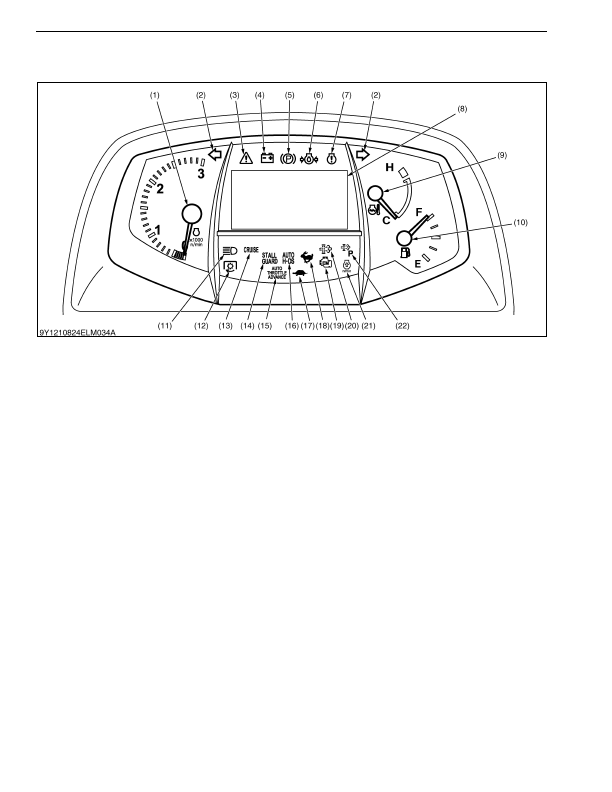

(1) Indication Items of Meter Panel

9Y1210824ELM0047US0

(1) Tachometer

(2) Turn signal / hazard indicator

(3) Master system warning

indicator

(4) Electrical charge warning

indicator

(5) Parking brake warning

indicator

(6) Engine oil pressure warning

indicator

(7) Engine warning indicator

(8) IntelliPanel™ display

(9) Coolant temperature gauge

(10) Fuel gauge

(11) High beam indicator

(12) PTO indicator

(13) Cruise control indicator [HST]

(14) Stall guard indicator [HST]

(15) ATA indicator [HST]

(16) Auto H-DS indicator [HST]

(17) H-DS Low speed range

indicator [HST]

(18) H-DS High speed range

indicator [HST]

(19) Emission indicator

(20) Regeneration indicator

(21) Engine RPM increase

indicator

(22) Parked regeneration indicator

KiSC issued 03, 2016 A
