Cleaning Water Separator

This job should not be done in the field, but in a clean place.

1. Close the fuel valve.

2. Unscrew the retainer ring and remove the cup, and rinse the

inside with kerosene.

3. Take out the element and dip it in the kerosene to rinse.

4. After  cleaning,  reassemble  the  water  separator,  keeping  out

dust and dirt.

5. Bleed the fuel system. (See page G-44.)

9Y1210824GEG0059US0

[7]  CHECK POINT OF EVERY 600 HOURS

Adjust Front Axle Pivot

If the front axle pivot pin adjustment is not correct, front wheel

vibration can occur causing vibration in the steering wheel.

Adjusting procedure

1. Loosen the lock nut, screw-in the adjusting screw until seated,

then tighten the screw with an additional 1/6 turn. Re-tighten the

lock nut.

9Y1210824GEG0060US0

[8]  CHECK POINT OF EVERY 800 HOURS

Checking Valve Clearance

• See page 1-S13.

9Y1210824GEG0061US0

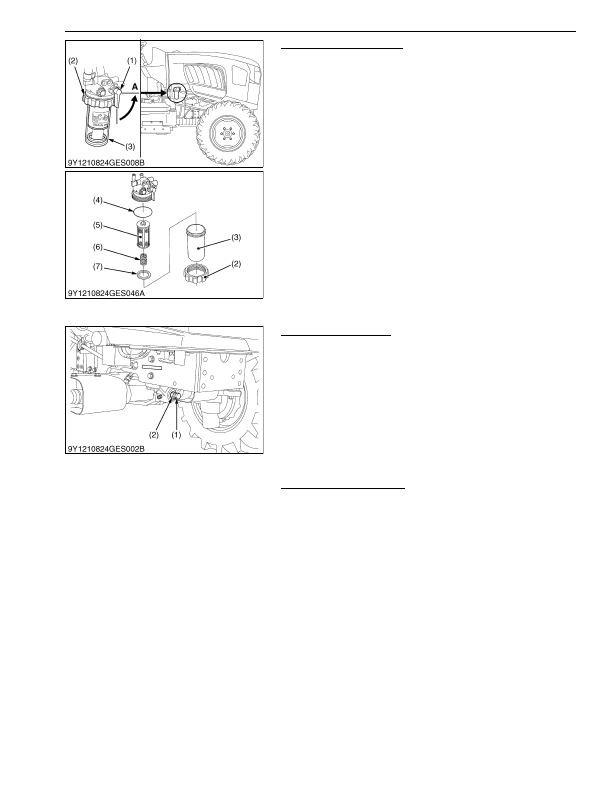

(1) Fuel Valve

(2) Retainer Ring

(3) Cup

(4) O-ring

(5) Element

(6) Spring

(7) Red Float

A : Close

(1) Adjusting Screw

(2) Lock Nut
