ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M34

HST

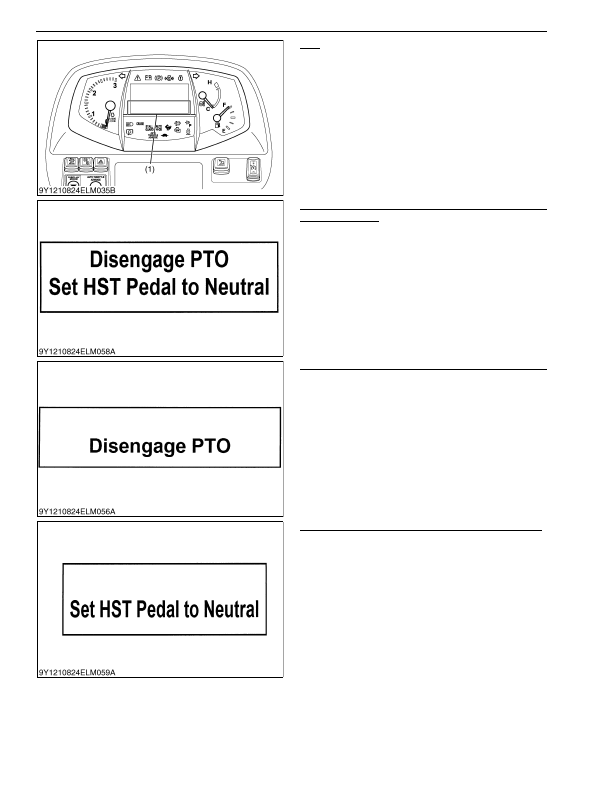

The safety switch for engine starting is adapted for

PTO switch and HST pedal in this model.

9Y1210824ELM0055US0

When the HST pedal and PTO switch are not set a
Neutral position.

Turn  the  PTO  switch  to

"OFF"

  and  foot  off  of  the

HST pedal.

9Y1210824ELM0056US0

When the PTO switch is not set at a Neutral position

Turn the PTO switch to

"Neutral"

 position.

9Y1210824ELM0057US0

When the HST pedal is not set at a Neutral position

Foot off the HST pedal to set the

Neutral

 position.

9Y1210824ELM0058US0

(1) LCD (Liquid Crystal Display)

KiSC issued 03, 2016 A
