ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M42

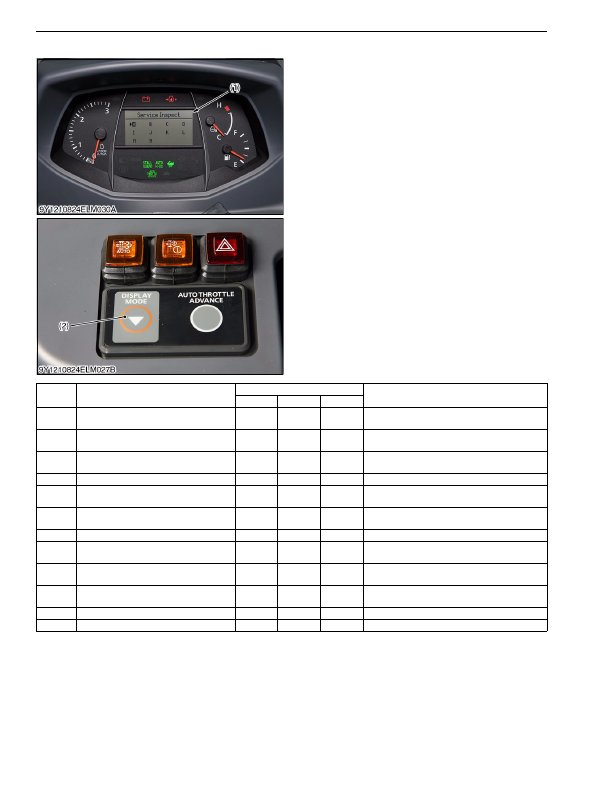

(3) Testing, Setting and adjusting Function

It can do various settings, adjustments and testing by

using the Liquid Crystal Display (LCD) (1).

When the main switch is turned to

"ON"

 or

"START"

position while holding down the display mode switch (2),

the  service  inspect  display  as  shown  in  figure  is

indicated. And then, a target mode is selected, the data

input and the fine adjustment, etc. can be done.

The following table shows the content of each mode

display by the alphabet.

9Y1210824ELM0068US0

(4) Glow Control

The electronic meter incorporates the glow control which was external single parts so for, and controls it with CPU.

When the main switch is turned

"ON"

, the temperature of the coolant is detected with the coolant temperature

sensor, and the time to supply current to the glow plug and the glow indicator lamp is controlled by CPU according to

the detected temperature. And the supply current to the glow plug is stopped automatically when the preheating time

is completed, and indicator lamp on the electronic meter panel is turned off.

9Y1210824ELM0069US0

(1) Liquid Crystal Display (LCD) (2) Display Mode Switch

Mode

Details of Mode

Transmission Model

Contents

Manual

GST

HST

A

Test Mode







For the checking the sensors voltage or engine and

PTO revolution exhaust gas temperature is required

B

Traveling Speed Coefficient Input Mode







For Inputting the operation coefficient of traveling

speed to Intellipanel.

C

PTO Coefficient Number Input Mode







For Inputting the operation coefficient number of

PTO to Intellipanel.

D

Error Information Reset Mode







For deleting the error information.

E

GST Lever Sensor Fine-adjustment Mode



For setting the Neutral position of GST lever sensor

(Input the sensor information to ECU)

F

GST Valve Fine-adjustment Mode



For setting the function of proportional reducing

valve (Input the valve information to ECU).

G

GST Shift shock Fine-adjustment Mode



For adjusting the clutch engaging interval.

J

Speed Unit Input Mode







For inputting the unit of traveling speeds to

Intellipanel.

K

HST Pedal, Range Shift Lever,

Fine-adjustment Mode



For setting the each sensors position (Input the

sensor information to ECU).

L

Throttle Sensor Fine-adjustment Mode







For setting the throttle sensor (Input the sensor

information to ECU).

M

Mode for Factory



Contact your KUBOTA distributor.

N

Tractor Model Select Mode







For inputting the model of tractor ECU.

KiSC issued 03, 2016 A
