4. ENGINE STARTING SYSTEM AND STOPPING

SYSTEM

[1] MANUAL TRANSMISSION

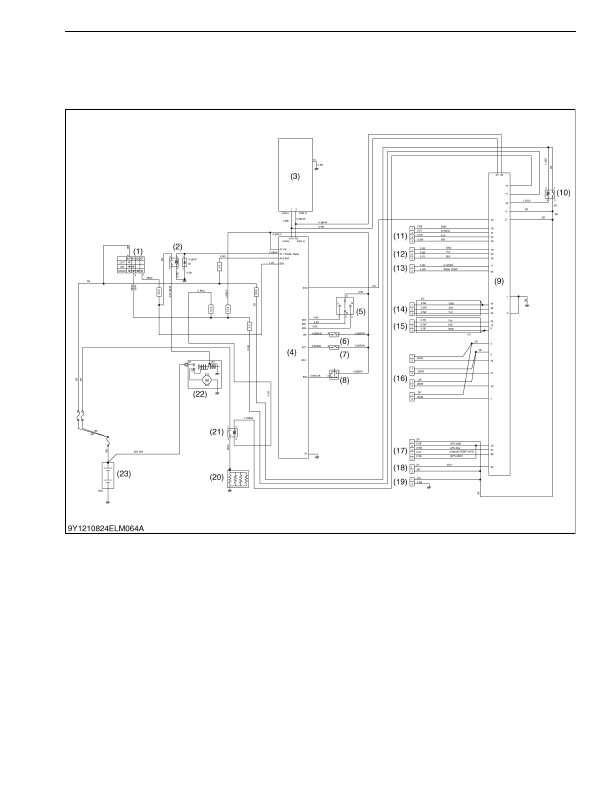

9Y1210824ELM0070US0

(1) Main Switch

(2) Starter Relay

(3) Instrument Panel

(4) Main ECU

(5) Shuttle Switch

(6) Seat Switch

(7) Seat Tilt Switch

(8) PTO Switch

(9) Engine ECU

(10) Engine ECU Power Relay

(11) Boost Sensor

(12) Rail Pressure Sensor

(13) Coolant Temperature Sensor

(14) Camshaft Position Sensor

(15) Crankshaft Position Sensor

(16) Injector

(17) Air Flow Sensor

(18) SCV (Suction Control Valve)

(19) Fuel Pump

(20) Glow Plug

(21) Glow Relay

(22) Starter

(23) Battery
