[9]  CHECK POINTS OF EVERY 1500 HOURS

Cleaning Fuel Injector Nozzle Tip

• See page 1-S57.

9Y1210824GEG0062US0

Replacing Oil Separator Element

 CAUTION

To avoid personal injury:

• Be sure to stop the engine before replacing the oil

separator element.

1. Remove the cover and take out the element. Wipe off oil and the

carbon in the case with a clean rag.

2. Fit a new oil separator element.

3. Tighten the cover.

9Y1210824GEG0063US0

Checking PCV (Positive Crankcase Ventilation) Valve (Oil
Separator)

• See page 1-S17.

9Y1210824GEG0064US0

Checking and Cleaning EGR Cooler

• See page 1-S17.

9Y1210824GEG0065US0

[10] CHECK POINTS OF EVERY 3000 HOURS

Checking and Cleaning EGR System

1. Perform an EGR actuation test.

2. Based on test results, check that the EGR valve gas passage

and coolant passage are not clogged.

3. Clean any soot from the gas passage so that it does not damage

the EGR valve.

4. Clean the coolant passage by running it with water.

9Y1210824GEG0066US0

Checking Supply Pump

• Refer to "6. DIAGNOSIS", DIAGNOSIS MANUAL "COMMON

RAIL SYSTEM" (Code No. 9Y120-02420).

9Y1210824GEG0067US0

Cleaning DPF Muffler

• Refer  to  the  Diesel  particulate  filter  handling  manual

(9Y121-08130).

9Y1210824GEG0068US0

Checking Turbocharger [L5060, L5460, L6060]

• See page 1-S16.

9Y1210824GEG0069US0

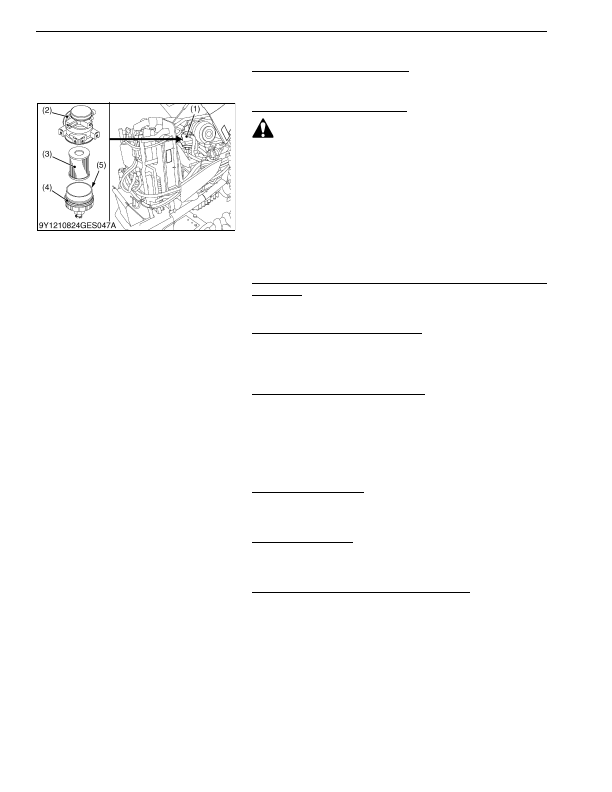

(1) Oil Separator

(2) Body

(3) Oil Separator Element

(4) Gasket

(5) Cover
