ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M46

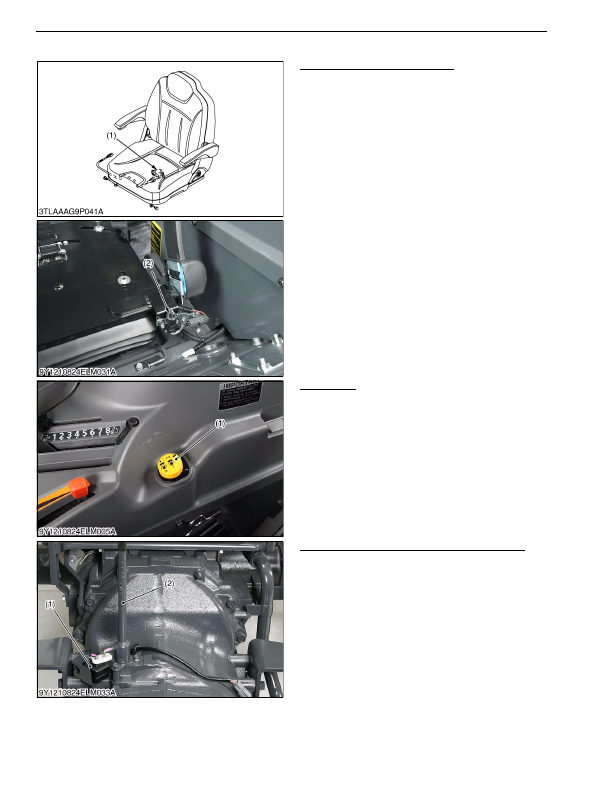

[4] RELATED SWITCHES

Seat Switch and Seat Tilt Switch

These  switches  are  located  under  the  seat.  When

sitting on the seat, the seat switch (1) is pushed in and

electrical circuit is closed. When the seat is vacant, this

switch is not pushed and electric circuit is opened. Other

seat tilt switch (2) is to detect tilting the seat. When tilting

these t forward the seat tilt switch (2) is not pushed and

electrical circuit is closed.

9Y1210824ELM0073US0

PTO Switch

This switch is located right cover.

When  the  PTO  switch  is  in

"OFF"

  position,  this

switch is pushed in and electric circuit is closed.

9Y1210824ELM0074US0

Shuttle Switch (Manual Transmission and GST)

This switch is mounted on the clutch housing case.

When the shuttle lever is in

"Neutral"

 position, the

electrical circuit is closed.

9Y1210824ELM0075US0

(1) Seat Switch

(2) Seat Tilt Switch

(1) PTO Switch

(1) Shuttle Switch

(2) Shuttle Shift Shaft

KiSC issued 03, 2016 A
