L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-M49

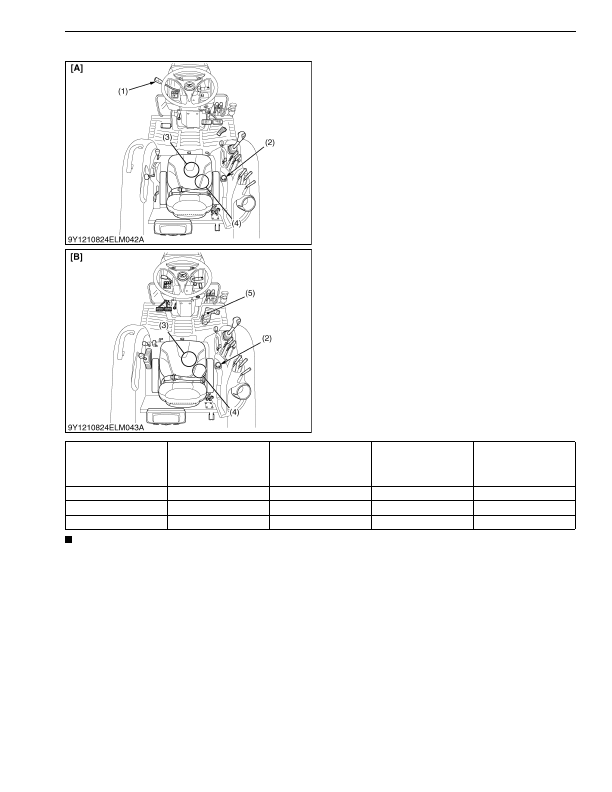

[6] AUTOMATIC ENGINE STOP

The tractor is equipped with Operator Presence

Control (OPC) system. The engine automatically stops

when the operator stands from the seat while engaging

PTO clutch.

NOTE

• When the mid PTO is not engaged and the seat is tilted, the engine does not stop even if rear PTO is

engaged.

9Y1210824ELM0080US0

(1) Shuttle Shift Lever

(2) PTO Switch

(3) Seat Switch

(4) Seat Tilt Switch

(5) HST Pedal

[A] Manual Transmission and

GST

[B] HST

Shuttle Switch or HST
Pedal Sensor

(Neutral: OFF)

(Others: ON)

PTO Switch

(Neutral: OFF)

(Engaged: ON)

Seat Switch

(Occupied: OFF)

(Vacant: ON)

Seat Tilt Switch

(Tilted: OFF)

(Normal: ON)

ON / OFF

OFF

ON / OFF

OFF

KiSC issued 03, 2016 A
