ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S20

(3)  Mode "B" (Traveling Speed Coefficient Input Mode) Input the 4 Digit Tire

Code for Correct Travel Speed to the Electronic Instrument Panel Memory
Panel

NOTE

• When the tire size is changed or electronic instrument

panel is replaced, this operation is required.

1. While holding down the display mode switch, turn on the main

switch.

2. Mode selection display

(a)

 is indicated on the LCD.

3. Press  the  display  mode  switch.  The  buzzer  rings  and  the

marked display moves.

4. Select the Mode

'"B"

.

5. Hold down the display mode switch for more than 2 seconds.

6.

"Speed Coefficient 0000 or 4-digit"

  numerical  number  is

displayed

(b)

.

7. To change the 4-digit numerical number, select the operation

coefficient according to the tractor model and tire size.

(Numerical Modification)

• Set the desired speed coefficient as follow :

• Each  time  the  display  mode  switch  is  pressed,  the  marked

display shifts to the next digit. Shift the marked display to the

desired position.

8. Hold down the display mode switch more than 2 seconds

9. Press the display mode switch and the number increases one

by one.

10. When the select number comes, hold down the display mode

switch more than 2 seconds.

11. Repeat the above steps to input the operation coefficient.

12. When the 4-digit operation coefficient has been input, press the

display mode switch to shift the marked arrow key to the

"SET"

(c)

 position.

13. Hold down the display mode switch for more than 2 seconds to

preserve the operation coefficient in the panel's memory.

14.

"OK"

 is displayed

(d)

: The operation coefficient has been input

correctly.

15. If

"NG"

 is displayed: Incorrect input. Repeat the procedure.

16. Turn off the main switch.

9Y1210824ELS0013US0

Tractor Model

Rear Wheel tire size

Operation Coefficient

L3560

12.4-24 (R1)

2358

L4060

14.9-24 (R1)

2097

L4760

2662

L5060

L5460

L6060

14.9-28 (R1)

2108

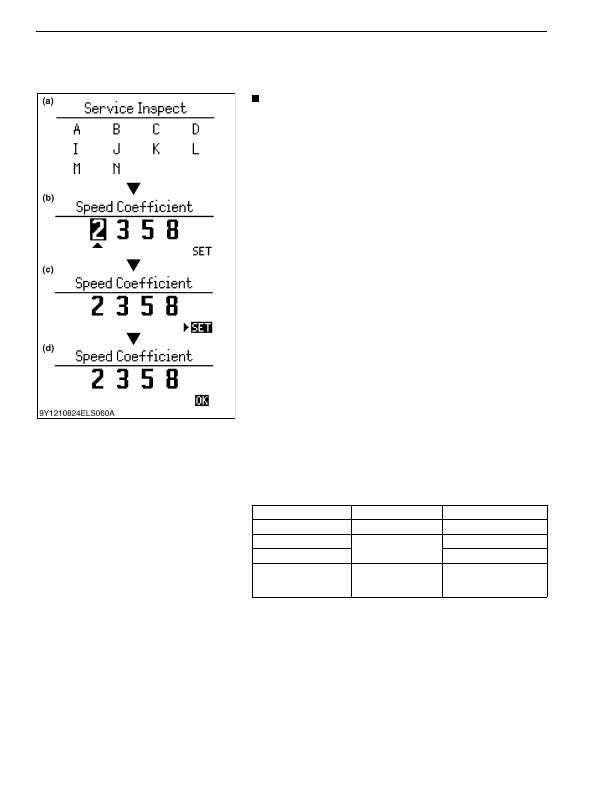

(a) Mode Selection Display
(b) Input Display

(c) Correct Preserving Display
(d) Confirmation Display

KiSC issued 03, 2016 A
