9 ELECTRICAL SYSTEM
background image

ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S23

(6)  Mode "E" (GST Lever Sensor Fine-adjustment Mode) Setting the GST

Lever's Neutral Position with its Sensor

IMPORTANT

• As for the fine-adjustment, make sure to set it correctly to

have the standard control thereafter.
NOTE

• When the GST lever sensor, the main ECU or the electronic

instrument panel is replaced, this adjustment is required.

1. Set the GST shift lever to

Neutral

 position.

2. While holding down the display mode switch, turn on the main

switch.

3. Mode selection display

(a)

 is indicated on the LCD.

4. Press  the  display  mode  switch.  The  buzzer  rings  and  the

marked display moves.

5. Select the Mode

"E"

.

6. Hold down the display mode switch for more than 2 seconds.

7. When

"GST Lever Sensor Fine-adjustment Mode"

  is

displayed

(b)

, release the display mode switch.

8.

"Hold button for 3s more"

 is displayed

(c)

.

9. Hold down the display mode switch for more than 3 seconds to

preserves the adjustment value to the main ECU.

"Fine-adjustment Mode Complete''

 is displayed

(d)

.

10. Fine-adjustment  preserves  to  main  ECU  has  been  input

correctly.

Turn off the main switch.

11. If

"Out of setting position Error No. 70"

 shows up

(e)

, the

GST lever sensor voltage is out of specifications.

• Make sure that GST lever is in the

Neutral

 position.

• Check  the  GST  lever  sensor  voltage  in  the  Test  Mode

(Mode

A

). If out of specifications, replace the sensor.

12. If

"Not Complete"

  is  displayed  :  Incorrect  input.  Repeat  the

procedure.

13. Turn off the main switch.

9Y1210824ELS0016US0

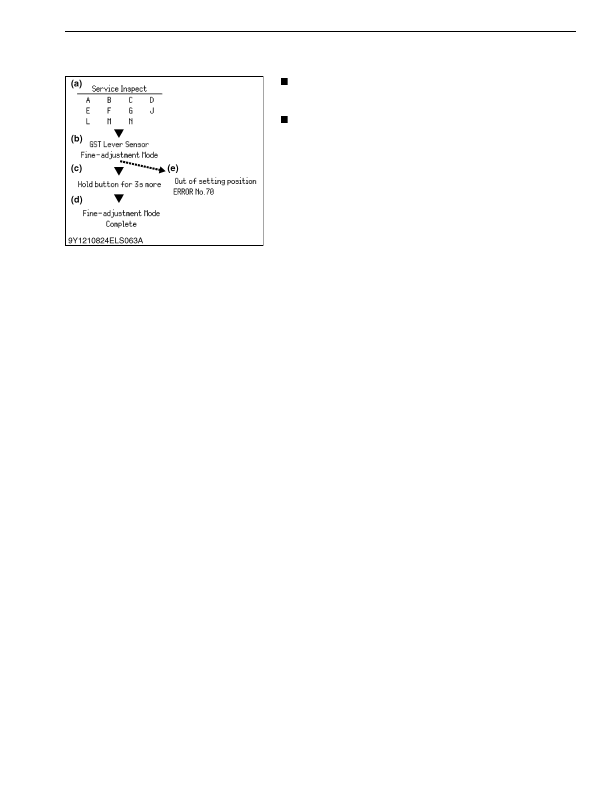

(a) Mode Selection Display
(b) Information Display
(c) Adjusting Display

(d) Correct Preserving Display
(e) Error Display
