ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S33

[5]  ECU CONTROL SYSTEM

(1)  Checking Fuse and Connector

Checking Fuse

1. The tractor electrical system is protected from potential damage

by fuses.

A  blown  fuse  indicates  that  there  is  an  overload  or  short

somewhere in the electrical system.

2. If any of the fuses should blow, replace with a new one of the

same capacity.

IMPORTANT

• Before replacing a blown fuse, determine why the fuse blew

and make any necessary repairs. Failure to follow this
procedure may result in serious damage to the tractor
electrical system.
If any of them should blow, replace with a new one of the
same capacity.



Protected Circuit

9Y1210824ELS0025US0

Fuse

No.

Capacity

(A)

Protected circuit

ROPS

CABIN

1

5

Meter (Battery)





2

15

Hazard



–

20

Hazard

–



3

5

Transmission controller (Battery)





4

10

Radio (Battery)

–



5

20

Air conditioner blower

–



6

20

Engine ECU (Battery)





7

30

Starter relay





8

5

Engine ECU (IG)





9

20

Cigar lighter

–



10

5

Radio (ACC)

–



11

15

Transmission controller (IG)





12

10

Meter (IG)





13

5

Meter switch





14

30

Head lights





15

7.5

Air conditioner compressor

–



16

30

Wiper

–



17

15

Flasher

–



18

10

Work light



–

15

Work light

–



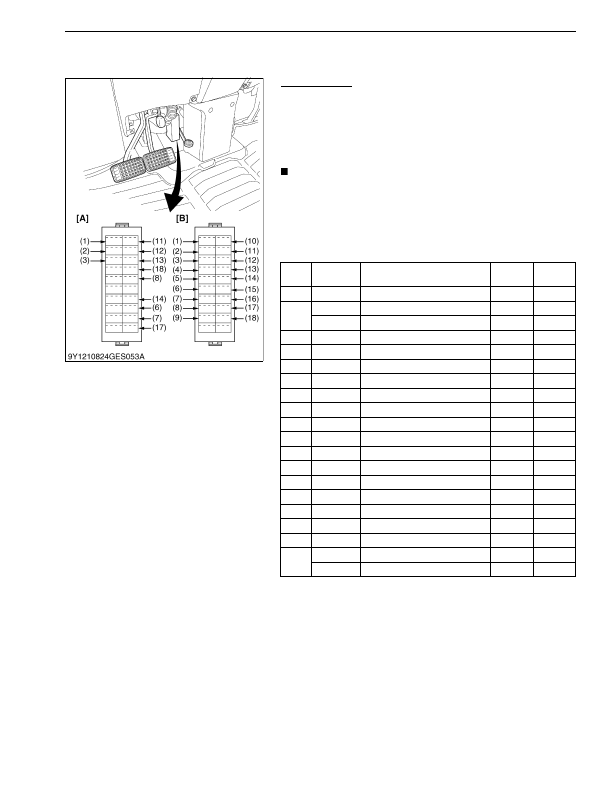

[A] ROPS Type

[B] CABIN Type

KiSC issued 03, 2016 A
