ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S35

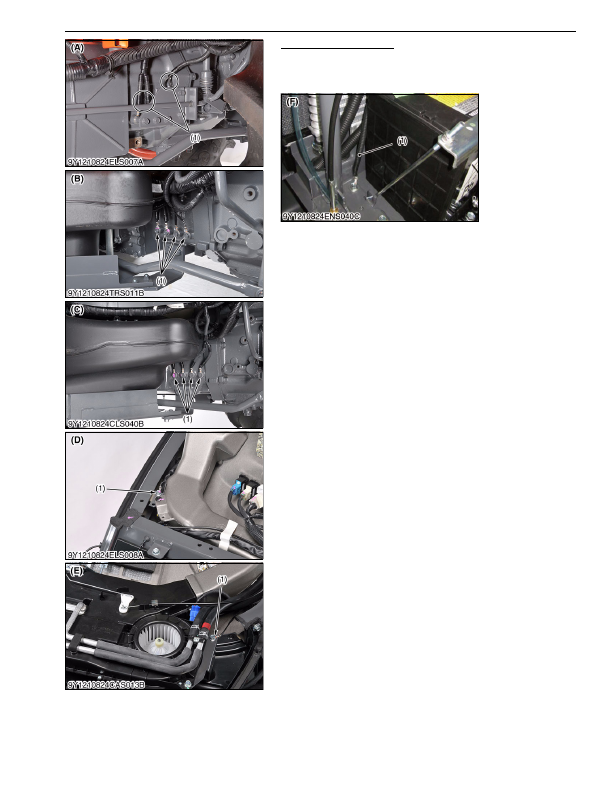

Checking Ground Cable

1. Check the whether the ground cables (1) are connected

securely to the tractor chassis.

2. If the ground cables are broken or disconnected, replace it.

9Y1210824ELS0027US0

(1) Ground Cable

(A) Located at Left Side of

Transmission Case (Manual
Transmission)

(B) Located at Left Side of

Transmission Case (GST)

(C) Located at Left Side of

Transmission Case (HST)

(D) Located at Under the Outer Roof

(CABIN Type)

(E) Located at Under the Outer Roof

(CABIN Type)

(F) Located at Right Side of Battery

(CCV Heater Equipped Type)

KiSC issued 03, 2016 A
