(2) Checking by Electronic Instrument Panel Connector; Terminal Name; Connector of Wire Harness Side- Page 674

ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S36

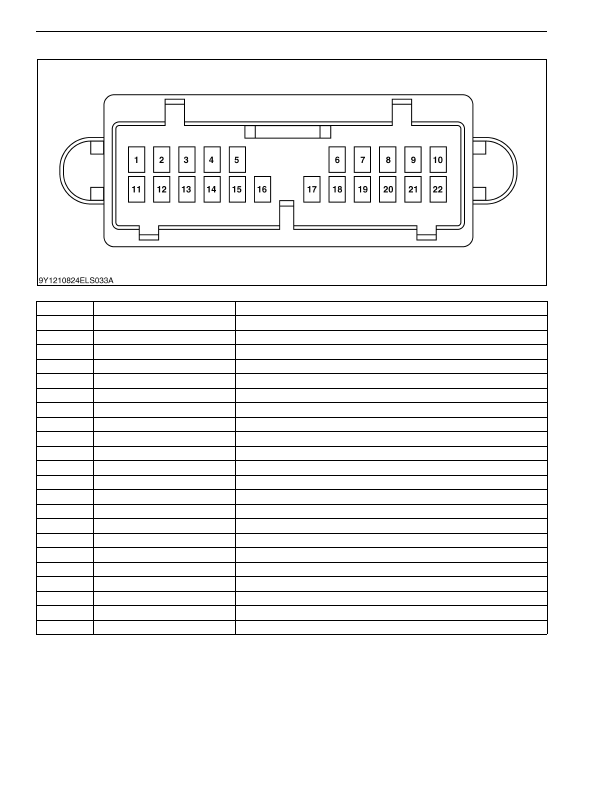

(2)  Checking by Electronic Instrument Panel Connector

Connector of Wire Harness Side

9Y1210824ELS0029US0

No.

Color of wiring

Terminal Name

1

G

CAN (L)

2

Y

CAN (H)

3

–

–

4

–

–

5

–

–

6

–

–

7

–

–

8

B/W

Turn Signal Switch RH

9

G/L

Turn Signal Switch LH

10

B

GND

11

Br/Y

High-Beam Indicator

12

L

Engine Oil Pressure Switch

13

W/R

Alternator

L

 Terminal

14

–

–

15

–

–

16

G/R

Parking Brake Switch

17

G/R

Illumintaion

18

Y/L

Fuel Level Sensor

19

–

–

20

Lg/B

Display Mode Switch

21

R/L

IGN

22

R

+12V (Power Souse from Battery)
