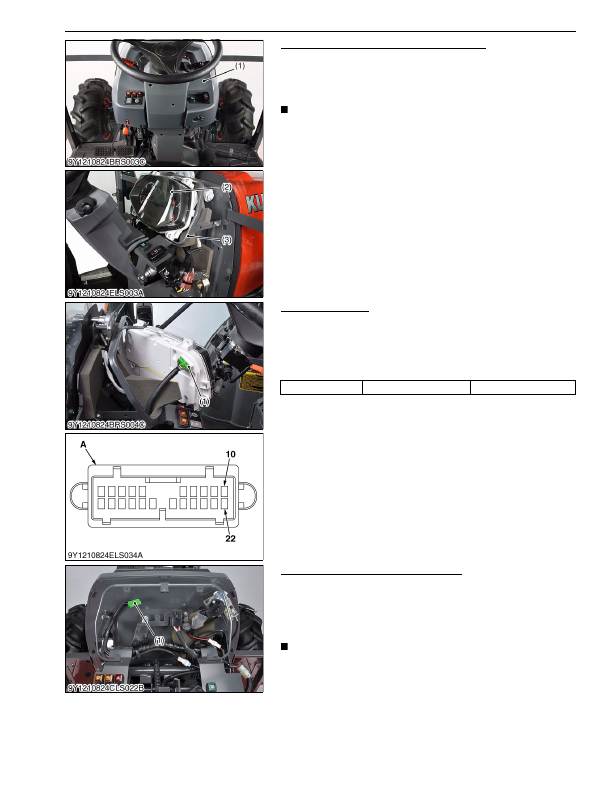

Disconnecting Instrument Panel Connector

1. Remove the panel cover (1).

2. Remove the electronic instrument panel (2) from panel frame

(3).

3. Disconnect the panel connector.

NOTE

• When replacing the electronic instrument panel, adjust to

mode "B", "C" and mode "J".

9Y1210824ELS0030US0

Connector Voltage

Main Voltage

1. Measure the voltage between the terminal

22

 (+) and terminal

10

 (−).

2. If the voltage differs from the battery voltage (11 to 14 V), the

wiring harness or battery is faulty.

9Y1210824ELS0031US0

Checking Instrument Panel Connector

1. Disconnect  the  connector  (1)  and  check  their  terminals  for

contamination and deformation.

2. Check to see that cable does not broken or terminals are not

shelled off.

3. If any damaged parts are found, repair or replace them.

IMPORTANT

• Connect connectors surely after checked.

9Y1210824ELS0028US0

(1) Panel Cover

(2) Instrument Panel (Intellipanel)

(3) Panel Frame

Voltage

Terminal

22

 to

10

Approx. battery voltage

(1) Connector

A: Connector of Wire Harness Side

(1) Connector
