GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-39

Checking Cabin Isolation Cushion

1. Check the isolation cushion (1) for any breakage or fatigue.

2. Replace them if they have deteriorated.

9Y1210824GEG0075US0

Checking Antifrost Heater for Oil Separator (If Equipped)

1. See page 9-S90.

9Y1210824GEG0134US0

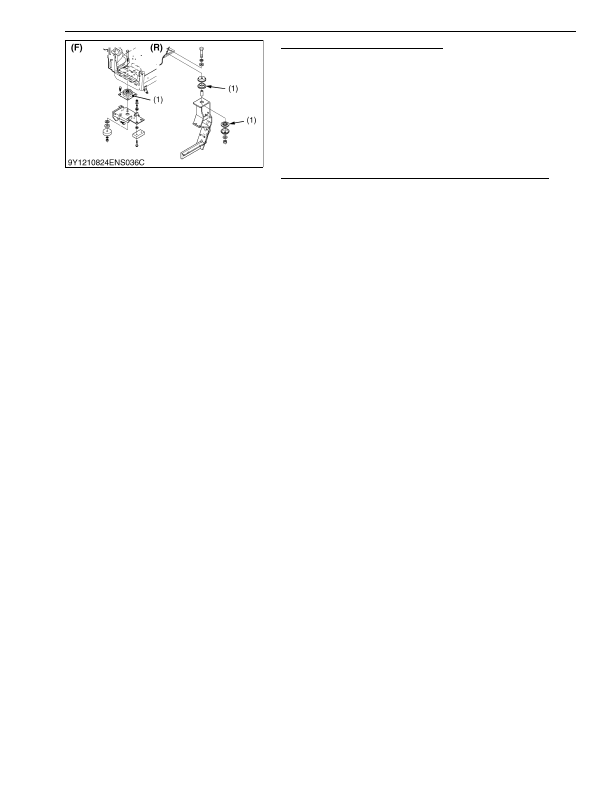

(1) Isolation Cushion

(F) Front Side
(R) Rear Side
