Hand Throttle Lever Sensor and Foot Throttle Sensor

1. Measure the resistance between terminal

c

 (6) and

GND

 (7).

2. Measure the resistance between terminal

GND

 (7) and

a

 while

slowly turning the sensor shaft.

3. Measure the resistance terminal

GND

 (7) and

b

 (5) while slowly

turning the sensor shaft.

4. It is OK if the resistance value approximates to the value shown

in the table below.

NOTE

• When replacing the each sensor be sure to adjust the mode

"K".

(Reference)

• The  change  of  resistance  can  be  checking  easily  when  an

analog tester is employed.

9Y1210824ELS0041US0

Reference

Terminal

c

 – Terminal

GND

Approx. 1 kΩ

Terminal

GND

 – Terminal

a

Resistance is normal if

smoothly changing

Approx. 1 kΩ to 0 Ω

Terminal

GND

 – Terminal

b

Resistance is normal if

smoothly changing

Approx. 0 Ω to 1 kΩ

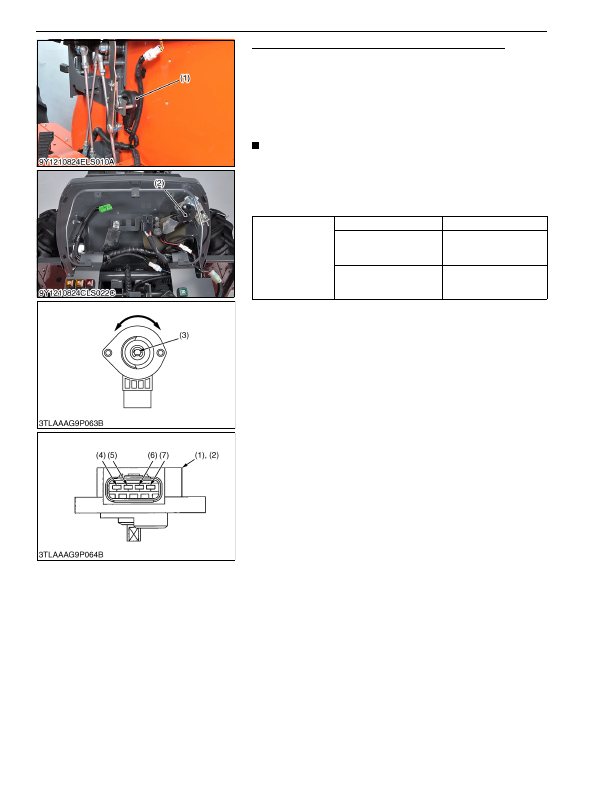

(1) Hand Throttle Lever Sensor

(2) Foot Throttle Sensor

(3) Sensor Shaft

(4) Terminal

a

(5) Terminal

b

(6) Terminal

c

(7) Terminal

GND
