ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S54

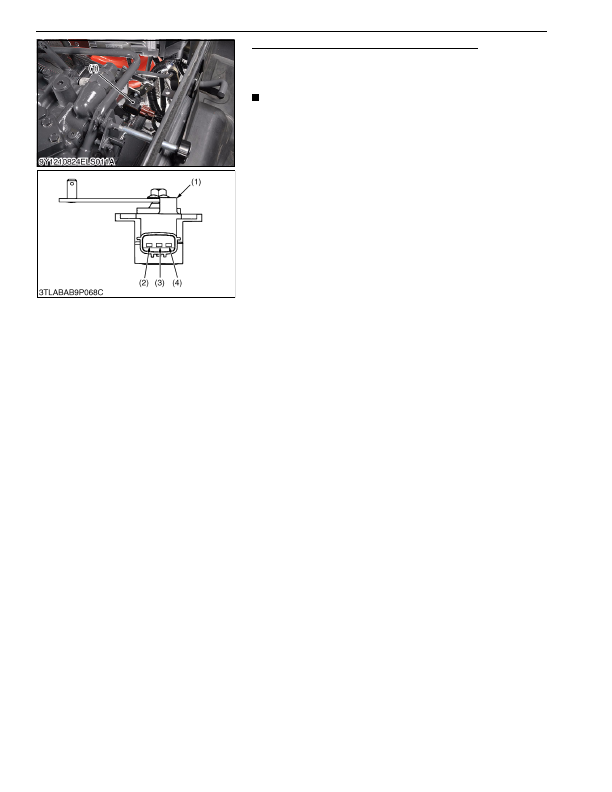

HST Range Gear Shift Lever Sensor Resistance

1. Measure the resistance between terminal

a

(2) and

b

(3) while

shifting the range gear shift lever.

2. It is OK if the resistance is smoothly changing.

NOTE

• When replacing the sensor, be sure to adjust the mode "K".

(Reference)

• The maximum resistance value between to terminal

a

(2) and

c

(4) is 4.32 to 6.48 kΩ.

9Y1210824ELS0049US0

(1) Range Gear Shift Lever Sensor

(2) Terminal

a

(3) Terminal

b

(4) Terminal

c

KiSC issued 03, 2016 A
