ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S73

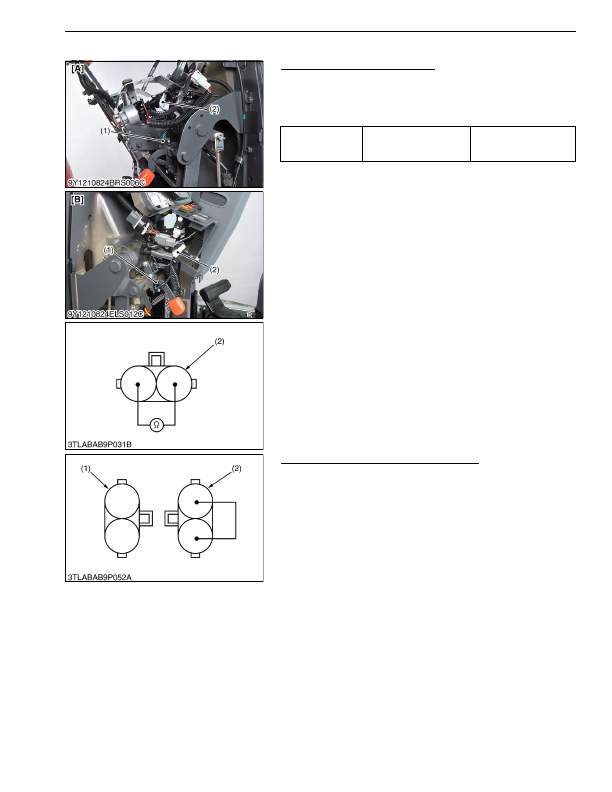

[10] MONITOR LAMP

Parking Brake Switch Continuity

1. Disconnect the connector from the parking brake switch (1) after

turning the main switch

"OFF"

.

2. Measure the resistance across the two terminals.

3. If infinity is not indicated, the switch is faulty.

9Y1210824ELS0095US0

Parking Brake Switch and Wiring Harness

1. Disconnect the connector from the parking brake switch after

turning the main switch

"OFF"

.

2. Turn the main switch

"ON"

and connect a jumper lead between

the connector terminals of wiring harness.

3. If the parking brake indicator lamp does not light, the panel

circuit or wiring harness is faulty.

9Y1210824ELS0096US0

Resistance

(Across switch

terminals)

In normal state

Infinity

(1) Parking Brake Switch

(2) Connector of Parking Brake Switch

[A] Manual Transmission / GST
[B[ HST

(1) Connector of Parking Brake Switch (2) Connector of Wiring Harness

KiSC issued 03, 2016 A

1 ... 707708709710711712713714715

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 711

1. Disconnect the connector from the parking brake switch (1) after turning the main switch "OFF" .
2. Measure the resistance across the two terminals.
3. If infinity is not indicated, the switch is faulty.
1. Disconnect the connector from the parking brake switch after turning the main switch "OFF" .
2. Turn the main switch "ON" and connect a jumper lead between the connector terminals of wiring harness.
3. If the parking brake indicator lamp does not light, the panel circuit or wiring harness is faulty.
