ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S75

[12] ENGINE CONTROL SYSTEM

(1) Injector

IMPORTANT

• When replacing the engine ECU, be sure to do injector correction. (Refer to the "DIAGNOSIS MANUAL"

(9Y120-02420)

9Y1210824ELS0099US0

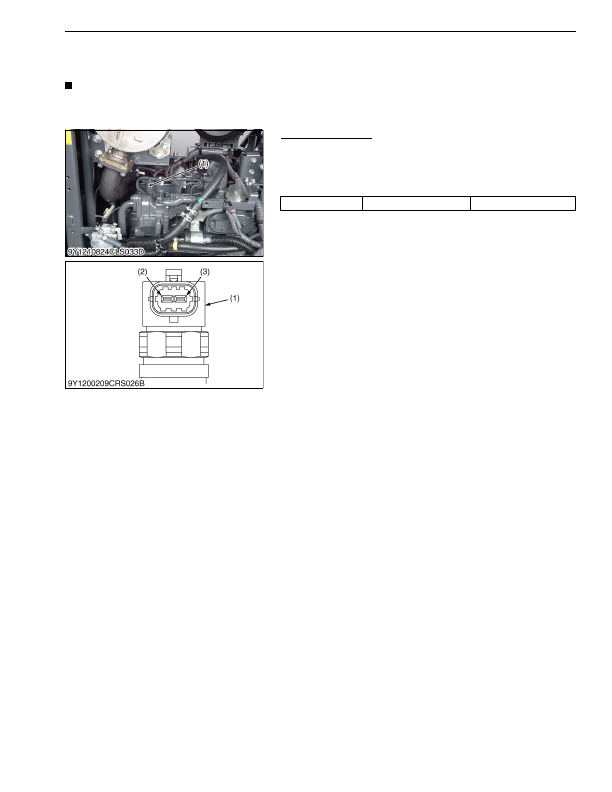

Injector Resistance

1. Measure the resistance with an ohmmeter across the terminals

shown in the table below.

2. If the reference value is not indicated, the injector wire harness

or injector is faulty.

9Y1210824ELS0100US0

Resistance

Terminal

1

 –

2

0.215 to 0.295 Ω

(1) Injector

(2) Terminal

1

(3) Terminal

2

KiSC issued 03, 2016 A
