ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S77

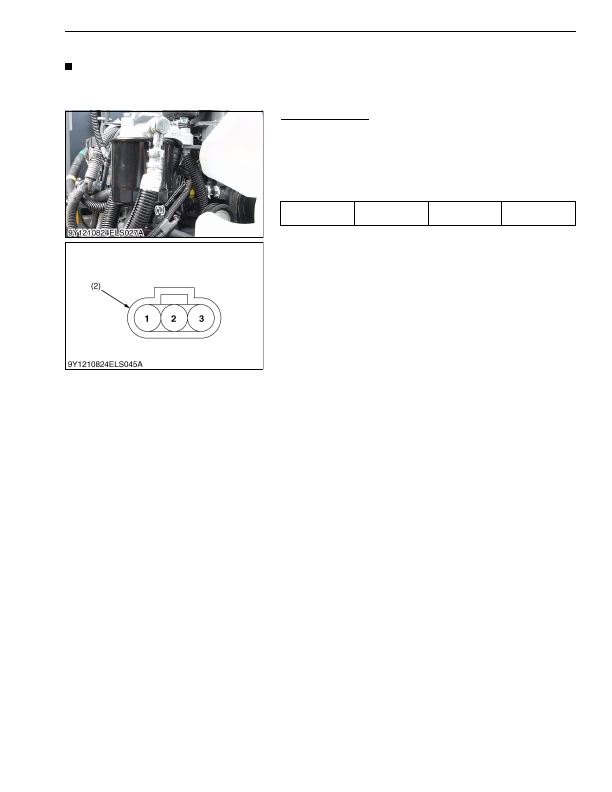

(3) Rail Pressure Sensor

NOTE

• Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric

circuit is normal.

9Y1210824ELS0104US0

Connector Voltage

1. Disconnect the connector, and turn the main key switch

"ON"

position.

2. Measure the voltage with a voltmeter across the terminals

shown in the table below.

3. If the reference value is not indicated as shown in the table

below, check the relating electric circuit.

9Y1210824ELS0105US0

Voltage

Main switch at

"ON"

Terminal

3

–

chassis

Approx. 5 V

(1) Rail Pressure Sensor

(2) Connector (Harness Side)

KiSC issued 03, 2016 A

1 ... 711712713714715716717718719

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 715

1. Disconnect the connector, and turn the main key switch "ON" position.
2. Measure the voltage with a voltmeter across the terminals shown in the table below.
3. If the reference value is not indicated as shown in the table below, check the relating electric circuit.

Since it is not possible to do unit checking for this sensor, judge the sensor is faulty if the relating electric circuit is normal.
