ELECTRICAL SYSTEM

L3560, L4060, L4760, L5060, L5460, L6060, WSM

9-S87

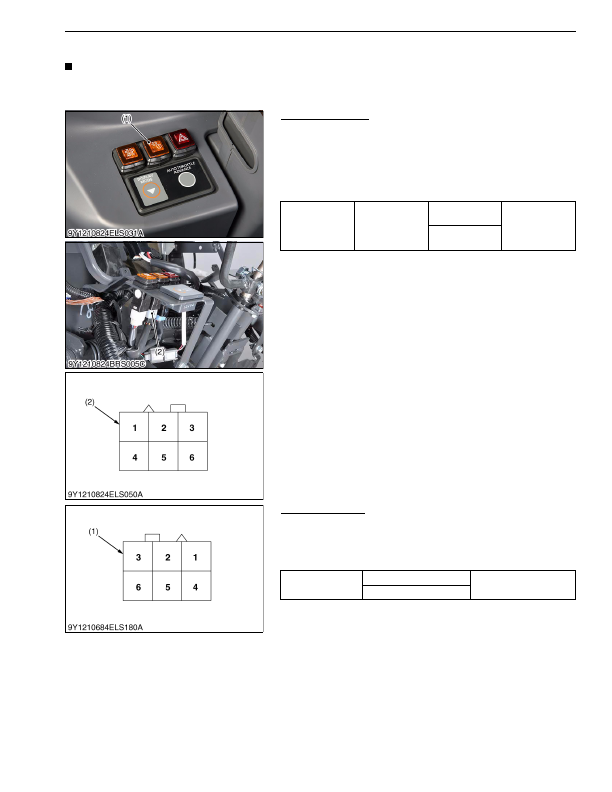

(13) Parked Regeneration Switch

NOTE

• Firstly check the connector voltage, secondly check the other wires continuity, then finally check the

switch continuity.

9Y1210824ELS0127US0

Connector Voltage

1. Disconnect the connector, and turn the main key switch

"ON"

position.

2. Measure  the  voltage  with  a  voltmeter  across  the  terminals

shown in the table below.

3. If  the  reference  value  is  not  indicated  as  shown  in  the  table

below, check the relating electric circuit.

9Y1210824ELS0128US0

Switch Continuity

1. Check  the  continuity  across  the  terminals  shown  in  the  table

below.

2. If  the  continuity  specified  below  is  not  indicated,  the  parked

regeneration switch is faulty.

9Y1210824ELS0129US0

Voltage

Main switch at

"ON"

Terminal

1

 –

chassis

Approx. battery

voltage

Terminal

3

 –

chassis

(1) Parked Regeneration Switch

(2) Connector (Harness Side)

Continuity Check

Terminal

1

 –

4

Continuity

Terminal

3

 –

6

(1) Connector (Switch Side)

KiSC issued 03, 2016 A
