CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-M1

1.  AIR CONDITIONER SYSTEM

[1]  OUTLINE OF AIR CONDITIONING SYSTEM

The machine is equipped with a thin large-capacity air conditioner with outside air intake. Through the inside air

filter (6) as well as the outside air filter (5), the inner roof (8) and reaches the air conditioner unit (15). The air is then

cooled and dehumidified by this unit.

The resulting air is heated to a comfortable level. In this way, the air being blown via the blow port can be kept at

comfortable temperature and humidity.

The front air outlet (10) can be opened and closed using the center knob of each port. The side air outlet (9) are

opened and closed using the mode lever on the control panel (3). With these ports open or closed, you can feel your

head cool and your feet warm.

(To be continued)

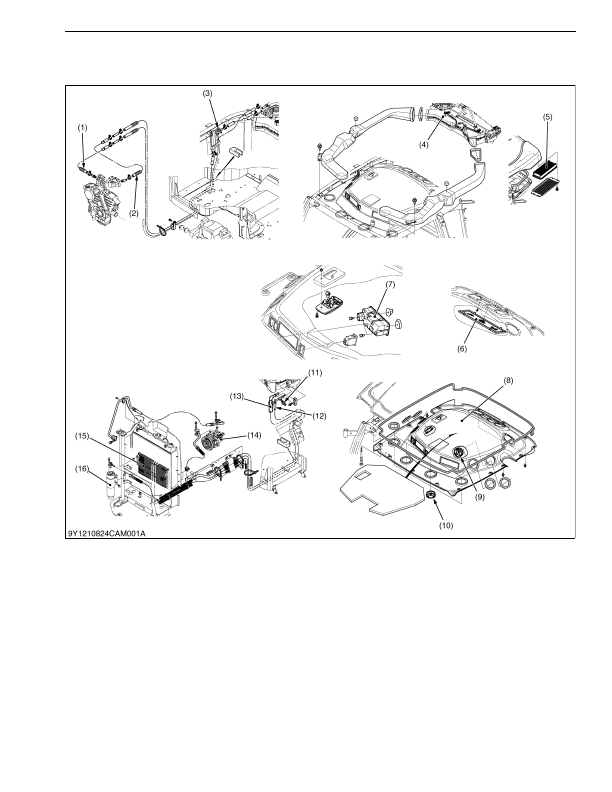

(1) Heater Hose (Out Side)

(2) Heater Hose (In Side)

(3) Water Valve

(4) Air Conditioner Unit

(5) Outside Air Filter

(6) Inside Air Filter

(7) Control Panel

(8) Inner Roof

(9) Side Air Outlet

(10) Front Air Outlet

(11) Pressure Switch

(12) High Pressure Pipe

(13) Low Pressure Pipe

(14) Compressor

(15) Condenser

(16) Receiver

KiSC issued 03, 2016 A
