CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-M5

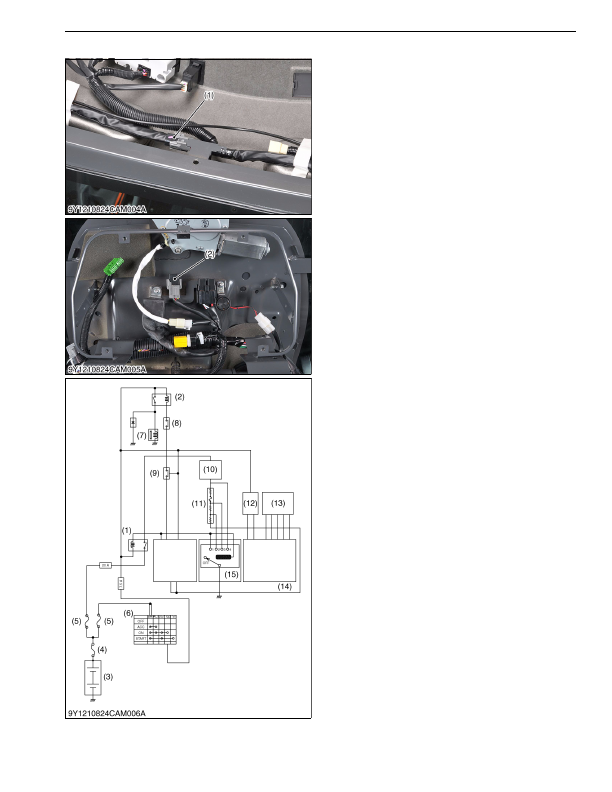

(2)  Compressor Relay, Blower Relays and Compressor Relay

Remove the outer roof and the relays are visible at

the  ceiling  rear  of  the  cabin:  blower  relay  (1)  and

compressor relay (2). When the blower fan is adjusted

for the air flow rate, the blower relay (1) is activated by a

signal from the fan switch on the control panel.

Among the air conditioner components, current flows

to  the  blower  motor  (10)  and  magnetic  clutch.  If  all  of

these current were to be passed through the main switch

(6) and supplied, the current would be too large for the

main switch (6) so that there will be danger or burning

out  the  main  switch  contact.  If  the  current  were  to  be

passed directly from the battery (3), forgetting to turn off

the blower motor (10) could result in a discharged battery

(3).

To  protect  against  such  trouble,  relays  have  been

provided. These relays have been made so that when

current flows through its coil, the contact close to supply

the  power  from  the  battery  (3).  By  employing  these

relays, the current flowing through the main switch (6)

has been decreased as only a small current is required

to  actuate  the  relay.  Thus  there  will  be  no  danger  of

burning out the switch contact, and when the main switch

(6) is opened, the relay contact will open at the same

time.  This  action  stops  the  current  flow  in  the  air

conditioner circuit so that there will also be no chance of

the battery discharging.

9Y1210824CAM0004US0

(1) Blower Relay

(2) Compressor Relay

(3) Battery

(4) Slow Blow Fuse (80 A)

(5) Slow Blow Fuse (60 A)

(6) Main Switch

(7) Compressor

(8) Pressure Switch

(9) Thermostat

(10) Blower Motor

(11) Blower Resistor

(12) Mode Motor

(13) Temperature Motor

(14) Control Panel

(15) Blower Switch

KiSC issued 03, 2016 A
