Replacing Light Bulb; Replacing Slow-Blow Fuses- Page 75

GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-46

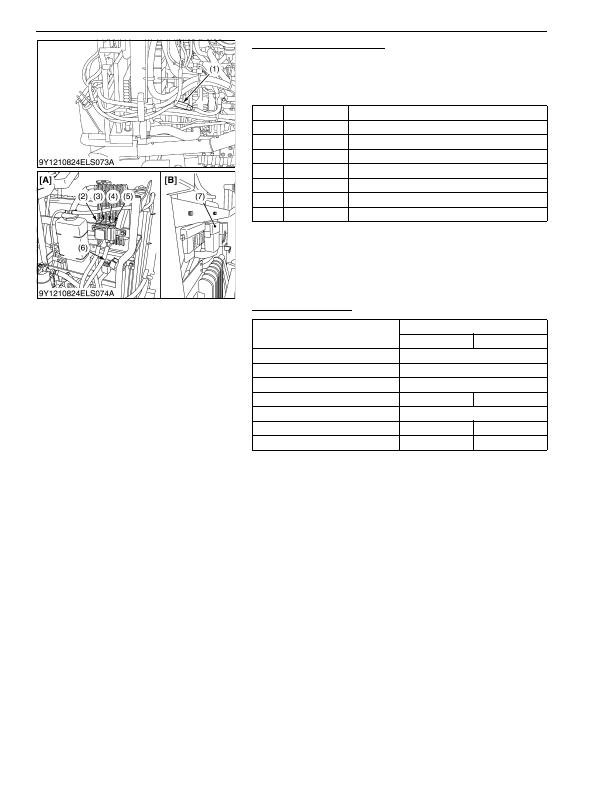

Replacing Slow-Blow Fuses

1. The  slow-blow  fuses  are  intended  to  protect  the  electrical

cabling. If any of them has blown out, be sure to pinpoint the

cause. Never use any substitute, use only a KUBOTA genuine

part.

9Y1210824GEG0091US0

Replacing Light Bulb

9Y1210824GEG0092US0

No.

Capacity (A)

Protected circuit

1

150

Alternator

2

100, 80

Main

3

60

Battery (CABIN Model)

4

60

Key Switch

5

50

Glow

6

40

Defogger (CABIN Model)

7

40

Oil Separator

[A] Front Side

[B] Rear Side

Light

Capacity

ROPS

CABIN

Head lights

60 W / 55 W

Tail light

5 W

Hazard and turn signal light (rear)

21 W

Hazard and turn signal light (front)

–

21 W

Side marker light

21 W

Room light

–

5 W

Work light

–

35 W
