CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S10

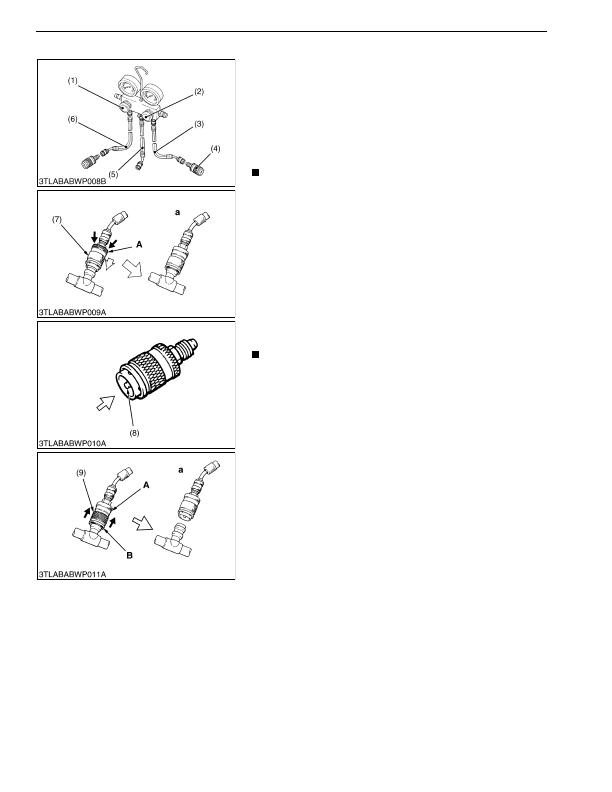

(2)  Refrigerant Charging Hose

The  charging  hoses  are  classified  into  three  colors.  Each

charging hose must be handled as follows:

• The  air  conditioner  manufacture  recommends  that  the  blue

hose (6) is  used for  the

LO

 pressure side (suction  side), the

green  hose  (5)  for  refrigeration  side  (center  connecting  port)

and the red hose (3) for

HI

 pressure side (discharged side).

(When connecting)

• Push the quick disconnect adaptor (4) into the charging valve,

and push on part

"A"

 until a click is heard.

NOTE

• When connecting, push carefully so the pipe does not

bend.

• When connecting the quick disconnect connector, should

the sleeve (7) move before the quick link connector can be
connected to the charging valve, move the quick sleeve to
its original position and try again.

• When some refrigerant remains in the charging hose at the

time of connections, it may be difficult to connect the quick
link connector. In this case, perform the operation after
removing any residual pressure in the hose. (Remove the
residual pressure by pushing the pusher (8).)

(When reassembling)

• While holding on to part

"A"

 of the quick disconnect adaptor,

slide part

"B"

 up.

NOTE

• After removing the adaptor, ensure to cap the quick

disconnect adaptor service valve.

9Y1210824CAS0024US0

(1)

LO

 Pressure Side Valve

(2)

HI

 Pressure Side Valve

(3) Red Hose

(4) Quick Disconnect Adaptor

(5) Green Hose

(6) Blue Hose

(7) Sleeve

(8) Pusher

(9) Sleeve

a:

CLICK

KiSC issued 03, 2016 A
