CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S12

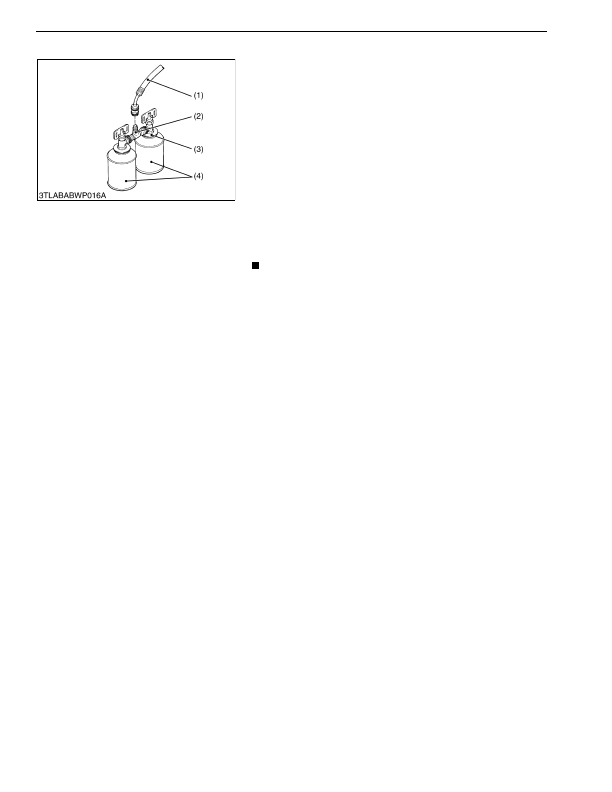

(6) T-joint

T-joint (2) is used to increase efficiency of gas charging using

two refrigerant containers (4) at a time.

1. Install two refrigerant container service valves to T-joint (2)

sides and connect the charging hose (1) to it.

9Y1210824CAS0028US0

(7) R134a Refrigerant Recovery and Recycling Machine

When there is necessity of discharging the refrigerant on

repairing the tractor, it should use recovery and recycling machine.

(Do not release the refrigerant into the atmosphere.)

IMPORTANT

• Use only R134a refrigerant recovery and recycling

machine, eliminate mixing R134a equipment, refrigerant
and refrigerant oils with R12 systems to prevent
compressor damage.

9Y1210824CAS0029US0

(1) Charging Hose (Green)

(2) T-joint

(3) Can Tap Valve

(4) Refrigerant Container

KiSC issued 03, 2016 A
