L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S17

Faulty Compression of Compressor

1. Symptoms seen in refrigerating cycle

LO

 pressure side (1)

0.39 to 0.59 MPa (4 to 6 kgf/cm

2

, 56.9 to 85.3 psi)

HI

 pressure side (2)

0.69 to 0.98 MPa (7 to 10 kgf/cm

2

, 99.6 to 142.2 psi)

2. Probable cause

• Leak in compressor.

3. Solution

• Replace compressor. (See page 10-S45.)

NOTE

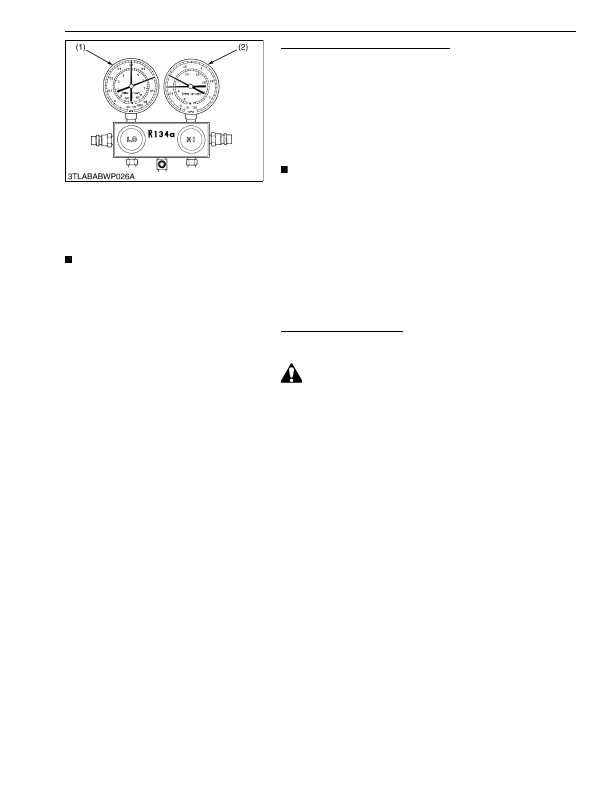

• Manifold gauge indications (left side figure) at faulty

compressing by compressor.

9Y1210824CAS0039US0

[2]  DISCHARGING, EVACUATING AND CHARGING

IMPORTANT

• When discharging, evacuating or charging the refrigerating system, be sure to observe the "4.

PRECAUTIONS AT REPAIRING REFRIGERANT CYCLE" on page 10-S7.

9Y1210824CAS0040US0

(1)  Discharging the Refrigerant

Discharge the Refrigerant

1. Discharge the refrigerant to the recovery and recycle machine,

follow to the manufacturer's instructions.

 CAUTION

• Wear the safety equipment follow to the manufacturer's

instructions.

9Y1210824CAS0041US0

(1)

LO

 Pressure Side

(2)

HI

 Pressure Side
