CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S22

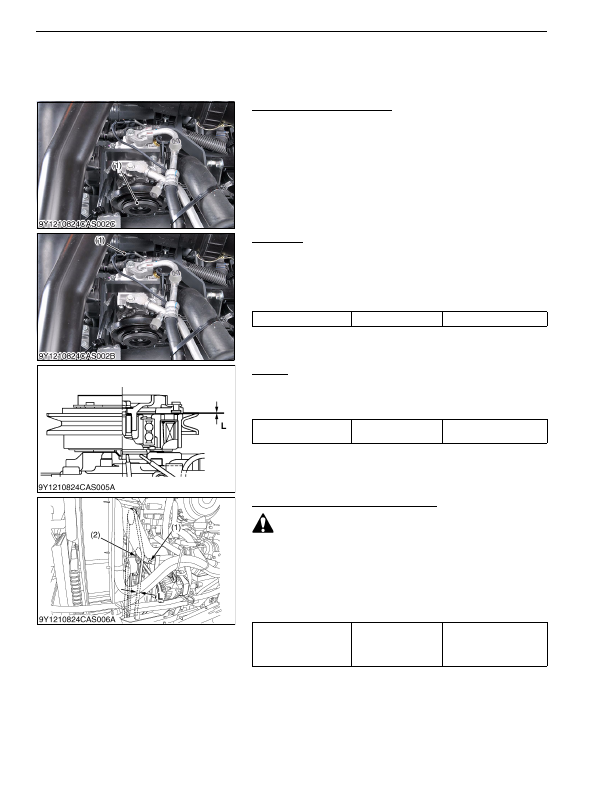

6.  CHECKING, DISASSEMBLING AND SERVICING

[1]  CHECKING AND ADJUSTING

(1) Compressor

Operation of Magnetic Clutch

1. Turn off the A/C switch after starting the engine.

2. Check whether abrasion or abnormal noise is heard when only

the magnetic clutch pulley is running.

3. Check that the magnetic clutch (1) does not slip when the A/C

switch  and  blower  switch  are  turned

"ON"

  (when  the  air

conditioner is in operation).

4. If anything abnormal is found, repair or replace.

9Y1210824CAS0047US0

Stator Coil

1. Measure  the  resistance  of  the  stator  coil  with  an  ohmmeter

across the

1P

 connector (1) of magnetic clutch and compressor

body.

2. If  the  measurement  is  not  within  the  factory  specifications,

replace the stator coil.

9Y1210824CAS0048US0

Air Gap

1. Check the air gap with feeler gauge.

2. If  the  measurement  is  not  within  the  factory  specifications,

adjust it. (See page 10-S57.)

9Y1210824CAS0049US0

Adjusting Air Conditioner Belt Tension

 CAUTION

• Be sure to stop the engine before checking air conditioner

belt tension.

1. Stop the engine and remove the key.

2. Apply  98  N  (10  kgf,  22  lbf)  pressure  to  the  belt  between  the

pulleys.

3. If tension is incorrect, adjust the belt tension.

4. If belt is damaged, replace it.

9Y1210824CAS0050US0

(1) Magnetic Clutch

Stator coil resistance

Factory specification

3.0 to 4.0 Ω

(1)

1P

 Connector

Air gap

"L"

Factory specification

0.30 to 0.65 mm

0.012 to 0.025 in.

L:

Air Gap

Air conditioner belt

tension

Factory specification

A deflection of between 10

to 12 mm (0.39 to 0.47 in.)

when the belt is pressed in

the middle of the span

(1) Adjusting Bolt

(2) Nut

L:

Deflection

KiSC issued 03, 2016 A
