(12) Front Wiper Motor; (13) Rear Wiper Motor (If Equipped); [2] DISASSEMBLING AND ASSEMBLING- Page 776

CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S33

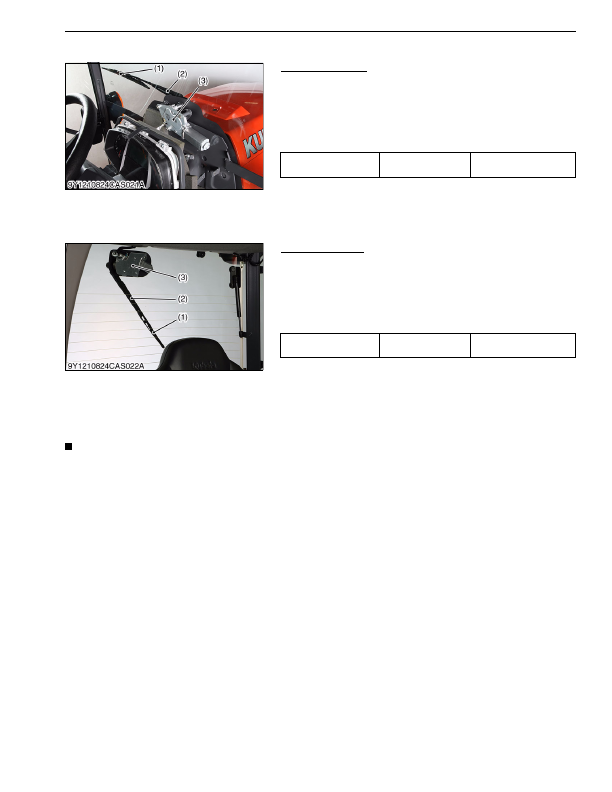

(12) Front Wiper Motor

Front Wiper Motor

1. Raise up the front wiper arm (2).

2. Turn the main switch to

"ON"

 position.

3. Push the front wiper switch to

"ON"

 position.

4. Count the number of wiper arm rocking per minutes.

5. If the number differs from the factory specifications, replace the

wiper motor assembly.

9Y1210824CAS0068US0

(13) Rear Wiper Motor (If Equipped)

Rear Wiper Motor

1. Raise up the rear wiper arm (2).

2. Turn the main switch to

"ON"

 position.

3. Push the rear wiper switch to

"ON"

 position.

4. Count the number of wiper arm rocking per minutes.

5. If the number differs from the factory specifications, replace the

wiper motor assembly.

9Y1210824CAS0069US0

[2] DISASSEMBLING AND ASSEMBLING

(1)  Separating Cabin from Tractor

NOTE

• Without discharging the refrigerant from system

9Y1210824CAS0070US0

No. of wiper arm swing

frequency at no load

Factory specification

33 to 43 times/min.

(1) Wiper Blade

(2) Wiper Arm

(3) Wiper Motor

No. of wiper arm swing

frequency at no load

Factory specification

33 to 43 times/min.

(1) Wiper Blade

(2) Wiper Arm

(3) Wiper Motor

KiSC issued 03, 2016 A
