8. SPECIAL TOOLS

[1] SPECIAL TOOLS FOR ENGINE

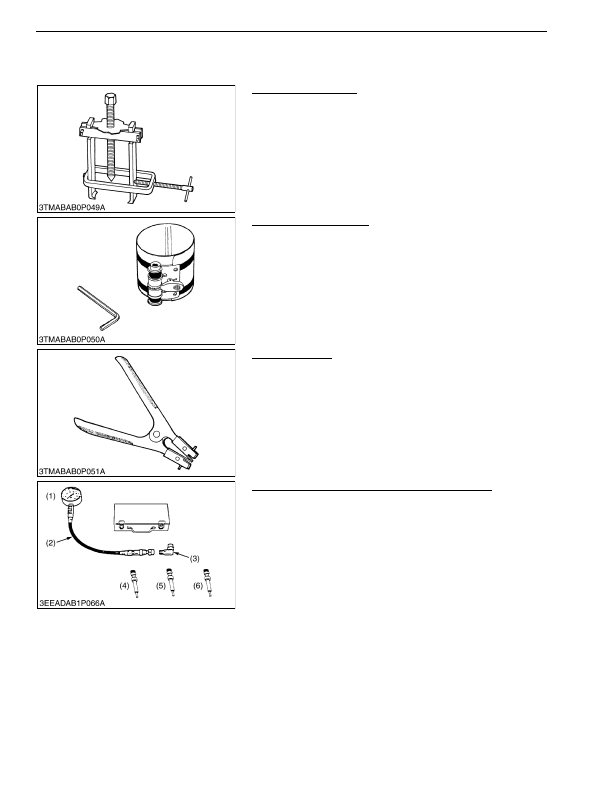

Special Use Puller Set
Code No.

• 07916-09032

Application

• Use exclusively to pull out bearing, gears and other parts with

ease.

WSM000001GEG0011US0

Piston Ring Compressor
Code No.

• 07909-32111

Application

• Use exclusively to push in the piston with piston rings into the

cylinder.

WSM000001GEG0012US0

Piston Ring Tool
Code No.

• 07909-32121

Application

• Use exclusively to remove or install the piston ring with ease.

WSM000001GEG0013US0

Diesel Engine Compression Tester (for Glow Plug)
Code No.

• 07909-39081 (Assembly)

• 07909-31291 (

K

)

• 07909-31301 (

L

)

• 07909-31311 (

M

)

Application

• Use to measure diesel engine compression and diagnosis of

need for major overhaul.

WSM000001GEG0096US0

(1) Gauge

(2) Hose Assembly

(3)

L

Joint

(4) Adaptor

K

(5) Adaptor

L

(6) Adaptor

M
