CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S47

Stator

1. Remove the lead wire from compressor body.

2. Remove the external circlip (1).

3. Remove the stator (2).

(When reassembling)

• Do not use the circlip again.

• Assemble the circlip for the tapered side to become outside of

front housing.

• The width of expanding of circlip is set is boss of shaft as a

minimum.

• Match and assemble the concave part (3) of the front housing

(5) and the pin (4) of stator.

9Y1210824CAS0077US0

(3) Removing Air Conditioner Unit

Draining Coolant

• See page 10-S34.

9Y1210824CAS0078US0

Discharging Refrigerant Gas

• See page 10-S17.

9Y1210824CAS0079US0

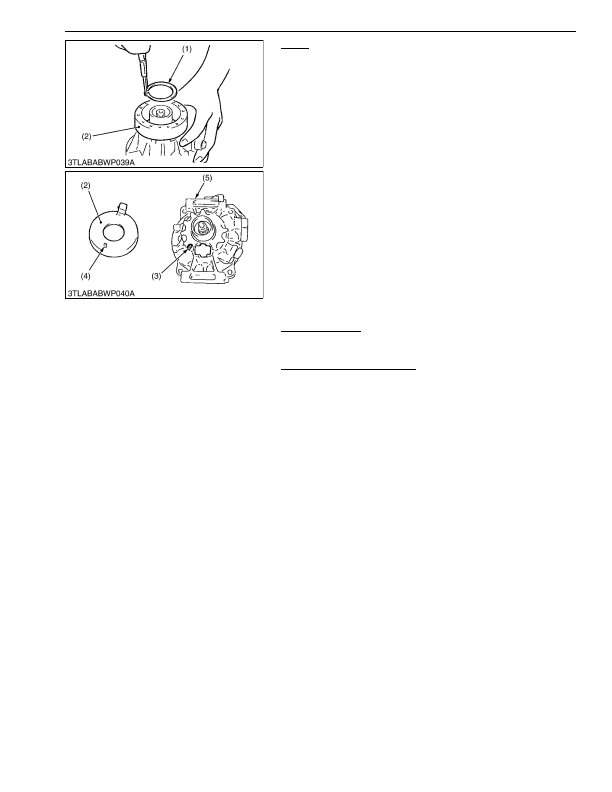

(1) External Circlip

(2) Stator

(3) Concave Part

(4) Pin

(5) Front Housing

KiSC issued 03, 2016 A
