CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S48

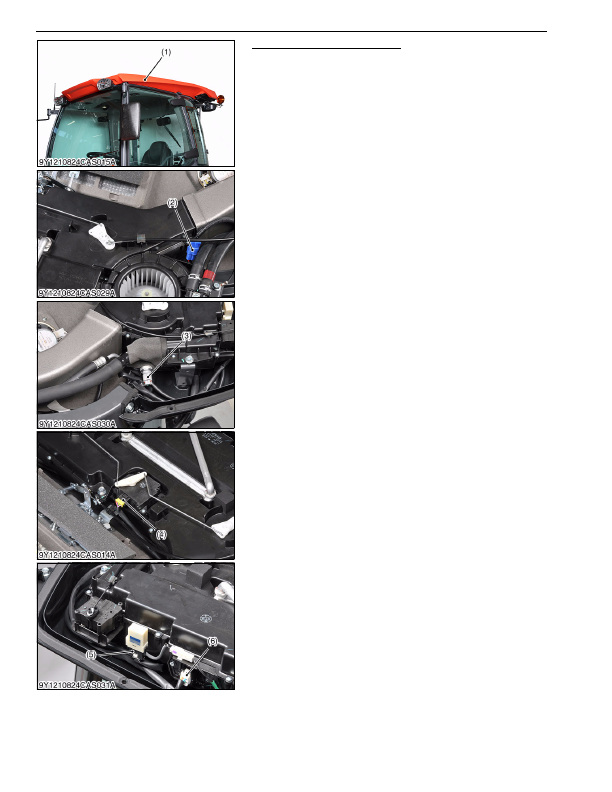

Outer Roof and Wiring Harness

1. Remove the outer roof (1).

2. Disconnect the blower motor connector (2) and pressure switch

connector (3).

3. Disconnect the temperature motor connector (4).

4. Disconnect the blower resistor connector (6) and thermostat

connector (5).

9Y1210824CAS0080US0

(1) Outer Roof

(2) Blower Motor Connector

(3) Pressure Switch Connector

(4) Temperature Motor Connector

(5) Thermostat Connector

(6) Blower Resistor Connector

KiSC issued 03, 2016 A
