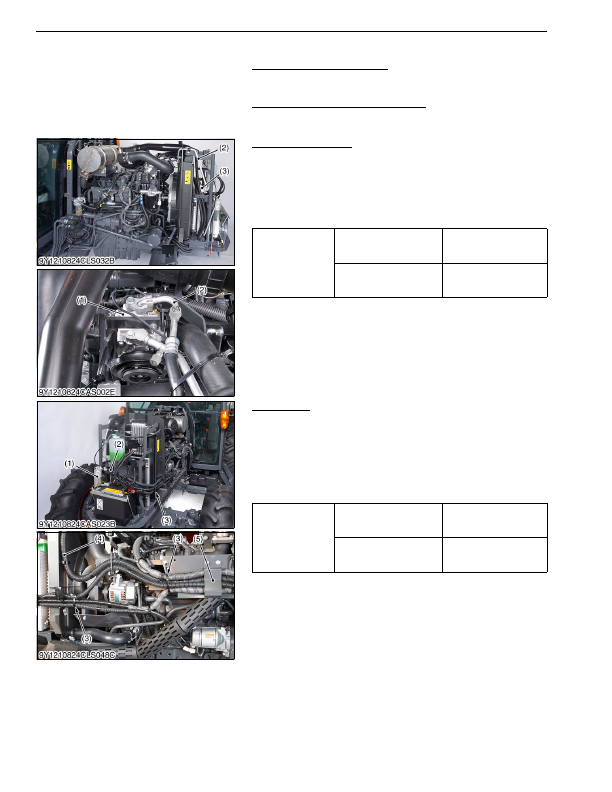

(4)  Removing Air Conditioner Pipes

Discharging Refrigerant Gas

• See page 10-S17.

9Y1210824CAS0079US0

Battery, Front Grill, Skirt and Bonnet

• See page 10-S35.

9Y1210824CAS0083US0

High Pressure Pipe 1

1. Disconnect the high pressure pipe 1 (2) from the compressor (1)

and  condenser  (3),  then  cap  the  open  fittings  immediately  to

keep moisture out of the system.

(When reassembling)

• Apply compressor oil (DENSO ND-OIL 8 or equivalent) to the

O-rings and be careful not to damage them.

9Y1210824CAS0084US0

Hose Clamp

1. Remove the hose clamps (3) and harness cover (5).

2. Disconnect the high pressure pipe 2 (2) from the receiver (1)

and low pressure pipe (4) from the compressor, then cap the

open fittings immediately to keep moisture out of the system.

(When reassembling)

• Apply compressor oil (DENSO ND-OIL 8 or equivalent) to the

O-rings and be careful not to damage them.

9Y1210824CAS0085US0

Tightening torque

High pressure pipe 1

mounting screw

(Compressor side)

7.90 to 11.8 N·m

0.806 to 1.20 kgf·m

5.83 to 8.70 lbf·ft

High pressure side 1

retaining nut

(Condenser side)

4.0 to 6.8 N·m

0.41 to 0.69 kgf·m

3.0 to 5.0 lbf·ft

(1) Compressor

(2) High Pressure Pipe 1

(3) Condenser

Tightening torque

High pressure pipe 2

retaining nut

(Receiver side)

11.8 to 14.7 N·m

1.21 to 1.49 kgf·m

8.71 to 10.8 lbf·ft

Low pressure pipe

mounting screw

(Compressor side)

7.90 to 11.8 N·m

0.806 to 1.20 kgf·m

5.83 to 8.70 lbf·ft

(1) Receiver

(2) High Pressure Pipe 2

(3) Hose Clamp

(4) Low Pressure Pipe

(5) Harness Cover
