CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S52

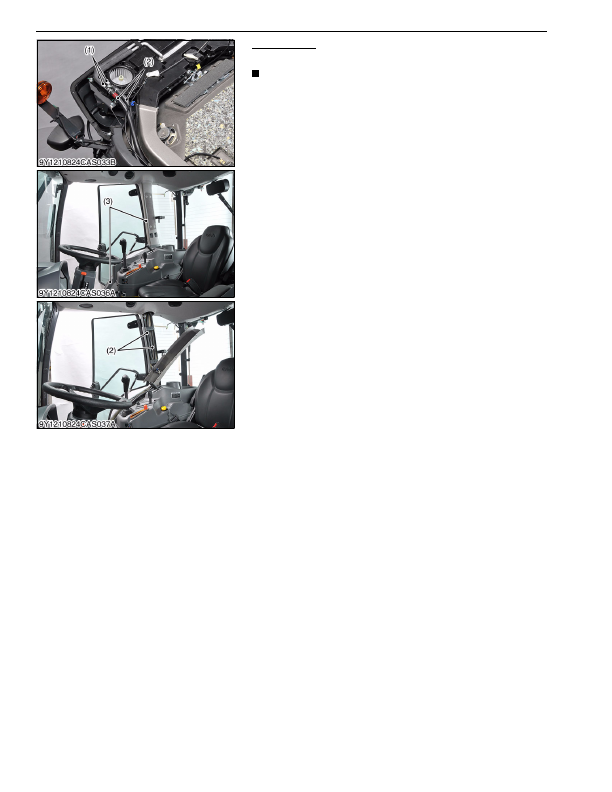

Heater Hoses

1. Remove the outer roof.

NOTE

• Before disconnecting the heater hoses (2), put the parting

marks on the hoses for marking proper reconnecting.

2. Disconnect the heater hoses (2) from the hose pipes (1).

3. Remove the inner covers (3).

4. Pull out the heater hoses (2) from the bottom of the cabin.

5. Remove the heater hoses (2).

(When reassembling)

• Connect the heater hoses at their original positions.

• In assembling the heater hose (2) to the pipe (1), connect the

heater hose with identification mark (white paint) to upper side

of the hose pipe.

• When connecting the heater hose with A/C unit, hose should be

put into the A/C unit pipe more than 30 mm (1.2 in.).

9Y1210824CAS0089US0

(1) Heater Pipe

(2) Heater Hose

(3) Inner Cover

KiSC issued 03, 2016 A

Detailed Information for Kubota L3560 Owners Manual

Lists of information found in Kubota L3560 Owners Manual - Page 795

  • 1. Remove the outer roof.
  • 2. Disconnect the heater hoses (2) from the hose pipes (1).
  • 3. Remove the inner covers (3).
  • 4. Pull out the heater hoses (2) from the bottom of the cabin.
  • 5. Remove the heater hoses (2).
  • 1.2 in.
  • Before disconnecting the heater hoses (2), put the parting marks on the hoses for marking proper reconnecting.
  • Connect the heater hoses at their original positions.
  • In assembling the heater hose (2) to the pipe (1), connect the heater hose with identification mark (white paint) to upper side of the hose pipe.
  • When connecting the heater hose with A/C unit, hose should be put into the A/C unit pipe more than 30 mm (1.
