(6) Cabin Windshields; Before Replacing Windshields (1); Before Replacing Windshields (2)- Page 796

CABIN

L3560, L4060, L4760, L5060, L5460, L6060, WSM

10-S53

(6) Cabin Windshields

Preparation

1. Prepare the followings.

• Cutter knife

1 piece

• Scraper

1 piece

• Gun for coating

1 piece

• Sika Tack-Ultrafast or equivalent

• Gummed tape

• Sika-Activator

• Sika primer 209

• Shin Etsu silicon KE420

• Sika-cleaner 205

NOTE

• Sika product are made by Sika Corporation.
• Shin Etsu silicon KE420 is made by Shin Etsu Polymer

Corporation.

• These materials can't be provided by Kubota Corporation.
• Therefore, please find the local made equivalent materials

in your country and use them when you need.

9Y1210824CAS0090US0

Before Replacing Windshields (1)

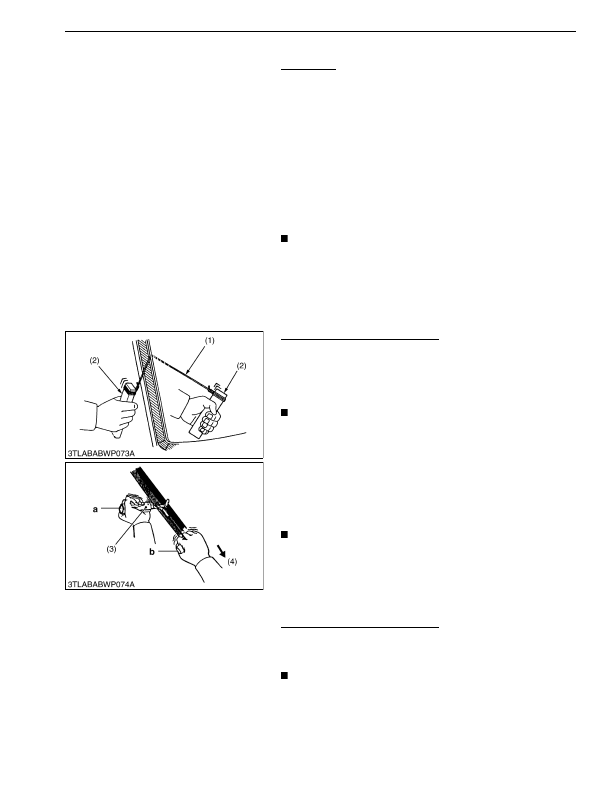

[In case of using piano wire (When glass is clacked)]

1. Thread the piano wire from the inside of cabin. Tie its both ends

to a wooden blocks or the like. (See the left figure.)

2. Pull  the  piano  wire  inward/outward  alternately  to  cut  the

adhered part.

NOTE

• Do not let the piano wire make sliding contact with the edge

of glass plate forcibly.

[In case of using cutter knife (When glass is totally crushed
finely)]

1. Insert the knife (3) into the adhered part.

2. Keep the edge of knife blade square to the glass edge at the

part

"a"

. Slide the knife blade along the glass surface and the

edge. Pull the part

"b"

 in the direction parallel to the glass edge

to cut them off.

NOTE

• Find a wider gap between the glass and body.
• Be careful of handling the cutter knife not to damage your

hand.

9Y1210824CAS0091US0

Before Replacing Windshields (2)

1. When  the  Sika  Tack-Ultrafast  or  equivalent  attached  to  the

cabin frame and the glass are reused, remove the bond clearly.

2. Clean the frame surface with Sika-Activator.

NOTE

• Remove the bond completely.

9Y1210824CAS0092US0

(1) Piano Wire

(2) Wood Peace

(3) Cutter Knife

(4) Pulling
