Before Replacing Windshields (3)

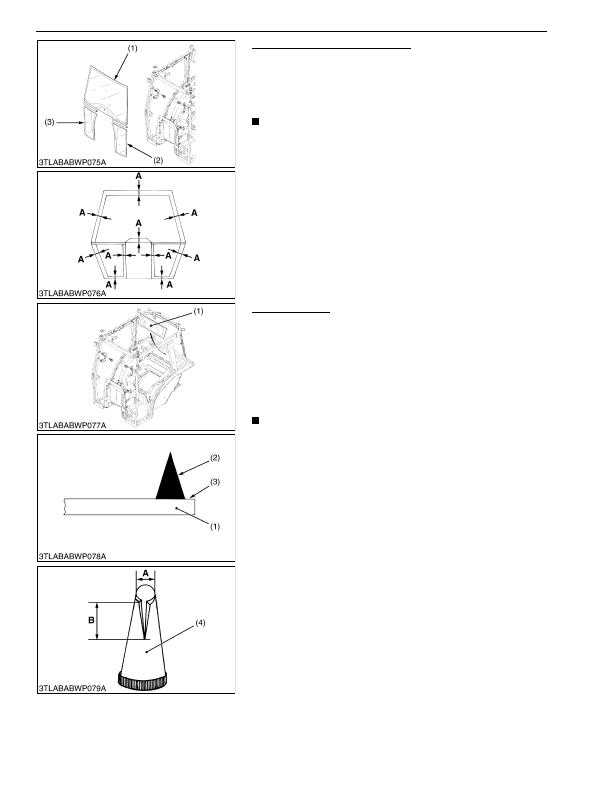

1. Check that the glasses are not damaged and cracked.

2. Turn  over  the  glass  and  clean  this  surface  of  the  glass  by

Sika-Activator.

3. The cleaning  area of the rear surface is indicated

"A"

 in the

figure left.

NOTE

• If not cleaning the glass, it may result in adhesive failure.

9Y1210824CAS0093US0

Rear Windshield

1. Apply a Sika primer 209 on the cabin frame.

2. Apply  a  Sika-Activator  (3)  on  the  rear  windshield  shown  in

figure.

3. Apply  a  Sika  Tack-Ultrafast  (2)  (or  equivalent)  on  the  rear

windshield (1) as shown in figure.

4. Install  the  rear  windshield  (1)  to  the  cabin  and  fix  tit  with  a

gummed tape.

5. Leave it for one hour.

NOTE

• Apply the Sika Tack-Ultrafast (or equivalent) with the jig

having the specified tip shape as shown in the figure left.

• Apply it with a uniform speed to minimize unevenness.
• Follow the instruction manual of Sika Tack-Ultrafast.
• When the gummed tape is removed, the rear windshield

may be displaced. In this case fix it again.

• Remove the gummed tape (adhesive tape) little by little to

check the bonding condition.

9Y1210824CAS0094US0

(1) Upper Windshield

(2) Lower Windshield (Left)

(3) Lower Windshield (Right)

A: 18 to 22 mm (0.71 to 0.87 in.)

(1) Rear Windshield

(2) Sika Tack-Ultrafast

(3) Sika-Activator

(4) Jig

A: 8 mm dia. (0.31 in. dia.)
B: 12 mm (0.47 in.)
