GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-52

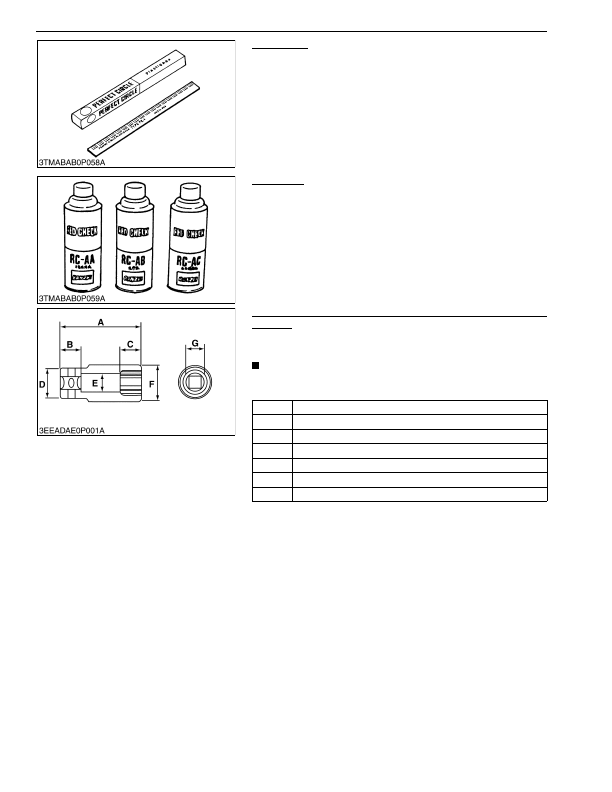

Plastigauge
Code No.

• 07909-30241

Application

• Use to check the oil clearance between crankshaft and bearing,

etc..

Measuring range

• Green: 0.03 to 0.07 mm (0.001 to 0.003 in.)

• Red: 0.05 to 0.1 mm (0.002 to 0.006 in.)

• Blue: 0.1 to 0.2 mm (0.004 to 0.009 in.)

WSM000001GEG0022US0

Red Check
Code No.

• 07909-31371

Application

• Use to check cracks on cylinder head, cylinder block, etc..

WSM000001GEG0023US0

Socket Wrench for Crank Pulley Nut (46 mm Deep Socket
Wrench)
Application

• Use to loosen and tighten the fan drive pulley mounting nut.

NOTE

• The special tool is not available, so make it. Refer to the

figure.

9Y1210824GEG0097US0

A

100 mm (3.94 in.)

B

25.0 mm (0.98 in.)

C

27.0 mm (1.06 in.)

D

45.0 mm dia. (1.77 in. dia.)

E

35.0 mm dia. (1.38 in. dia.)

F

62.5 mm dia. (2.46 in. dia.)

G

46.0 mm (1.81 in.)

KiSC issued 03, 2016 A
