GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-53

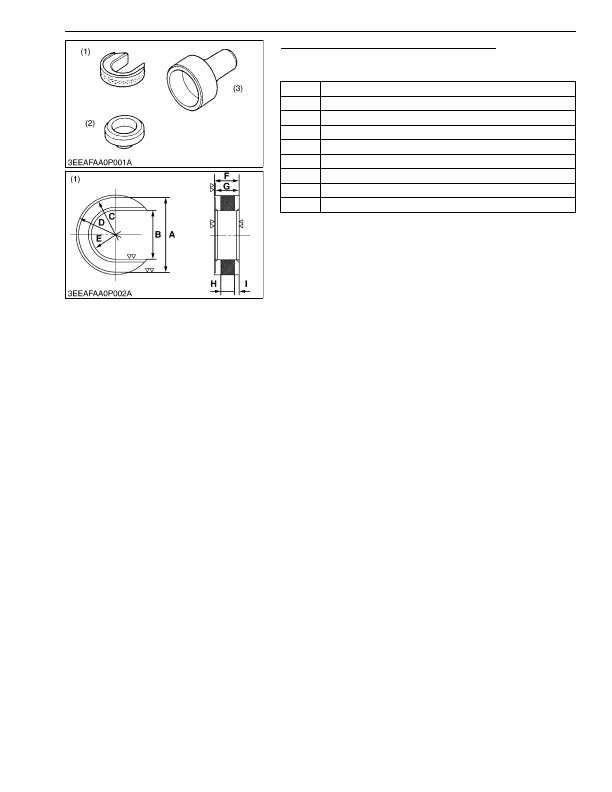

Auxiliary Socket for Fixing Crankshaft Sleeve
Application

• To fix the crankshaft sleeve of the diesel engine.

(To be continued)

A

80.0 mm (3.15 in.)

B

60.10 to 60.30 mm (2.367 to 2.374 in.)

C

80.0 mm dia. (3.15 in. dia.)

D

85.0 mm dia. (3.35 in. dia.)

E

60.10 to 60.30 mm dia. (2.367 to 2.374 in. dia.)

F

26.30 to 26.40 mm (1.036 to 1.039 in.)

G

25.85 to 25.90 mm (1.018 to 1.019 in.)

H

15.0 mm (0.591 in.)

I

5.0 mm (0.20 in.)

(1) Stopper

(2) Sleeve Guide

(3) Auxiliary Socket for Pushing

KiSC issued 03, 2016 A
