GENERAL

L3560, L4060, L4760, L5060, L5460, L6060, WSM

G-55

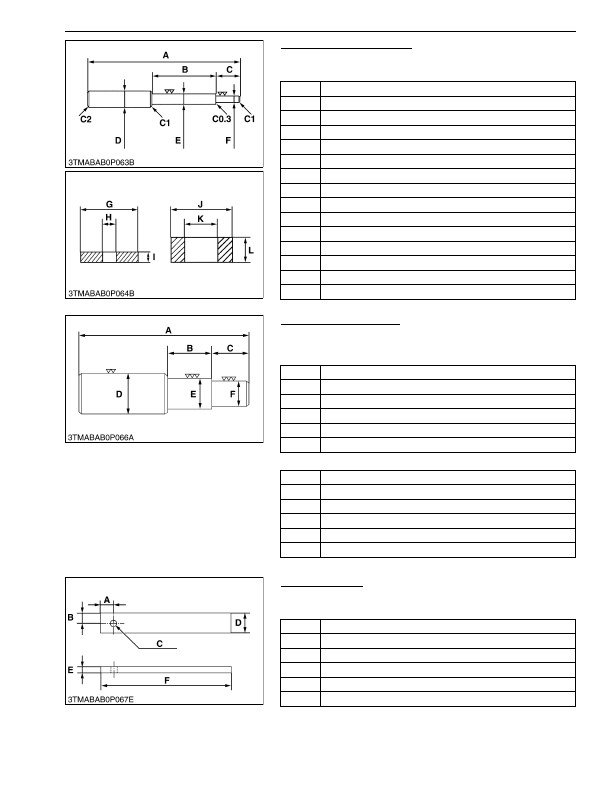

Valve Guide Replacing Tool
Application

• To press out and press fit the valve guide.

9Y1210824GEG0099US0

Bushing Replacing Tools
Application

• To press out and press fit the bushing.

1) For small end bushing

2) For idle gear bushing

9Y1210824GEG0101US0

Flywheel Stopper
Application

• To loosen and tighten the flywheel screw.

9Y1210824GEG0102US0

A

225 mm (8.86 in.)

B

70 mm (2.8 in.)

C

45 mm (1.8 in.)

D

20 mm dia. (0.79 in. dia.)

E

12.7 to 12.9 mm dia. (0.500 to 0.507 in. dia.)

F

7.50 to 7.60 mm dia. (0.296 to 0.299 in. dia.)

G

25 mm dia. (0.98 in. dia.)

H

7.70 to 8.00 mm dia. (0.304 to 0.314 in. dia.)

I

5 mm (0.2 in.)

J

20 mm dia. (0.79 in. dia.)

K

13.5 to 13.8 mm dia. (0.532 to 0.543 in. dia.)

L

8.90 to 9.10 mm (0.351 to 0.358 in.)

C1

Chamfer 1.0 mm (0.039 in.)

C2

Chamfer 2.0 mm (0.079 in.)

C0.3

Chamfer 0.3 mm (0.01 in.)

A

162 mm (6.38 in.)

B

35 mm (1.4 in.)

C

27 mm (1.1 in.)

D

35 mm dia. (1.4 in. dia.)

E

27.90 to 27.95 mm dia. (1.099 to 1.100 in. dia.)

F

25.00 to 25.01 mm dia. (0.9843 to 0.9846 in. dia.)

A

175 mm (6.89 in.)

B

40 mm (1.6 in.)

C

38 mm (1.5 in.)

D

45 mm dia. (1.8 in. dia.)

E

41.90 to 41.95 mm dia. (1.650 to 1.651 in. dia.)

F

37.950 to 37.970 mm dia. (1.4941 to 1.4948 in. dia.)

A

20 mm (0.79 in.)

B

15 mm (0.59 in.)

C

10 mm dia. (0.39 in. dia.)

D

30 mm (1.2 in.)

E

8 mm (0.3 in.)

F

200 mm (7.87 in.)

KiSC issued 03, 2016 A
